A connection detail of damper roof has given in this 2D Autocad DWG drawing file. Download the 2D Autocad DWG drawing file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

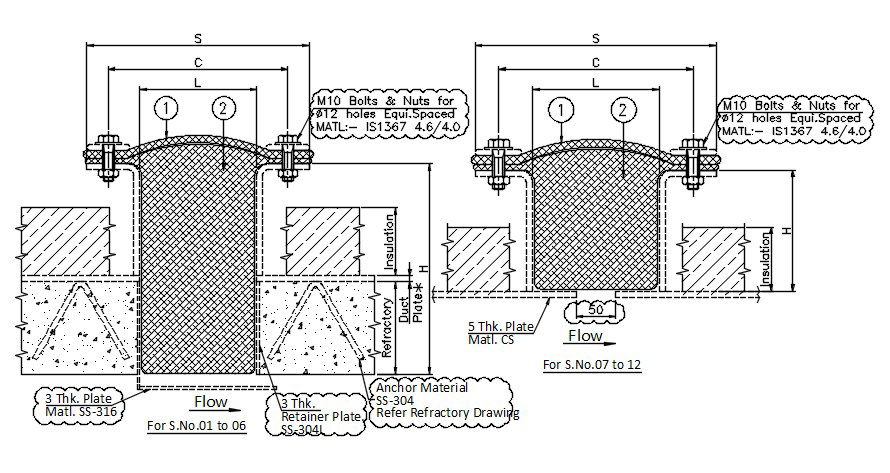

A connection detail of damper roof has given in this 2D Autocad DWG drawing file. M10 Bolts & Nuts for ?12 holes Equally Spaced MATL:- IS1367 4.6/4.0 is given. Insulation, duct plate, refractory, 5mm and 3mm retainer thickness plate has mentioned in this drawing file. Anchor material details are given in this drawing. Download the 2D Autocad DWG drawing file. Thank you for downloading the 2D AutoCAD DWG drawing file and other CAD program files.
File Type:
DWG
File Size:
155 KB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#Plan of damp roof#Duct flange#Connection details of damper roof#Autocad model#Autocad drawing file#2D Autocad drawing#DWG drawing file
