FCU installation detail is given in this Autocad file. Download the 2D Autocad drawing file.


Description

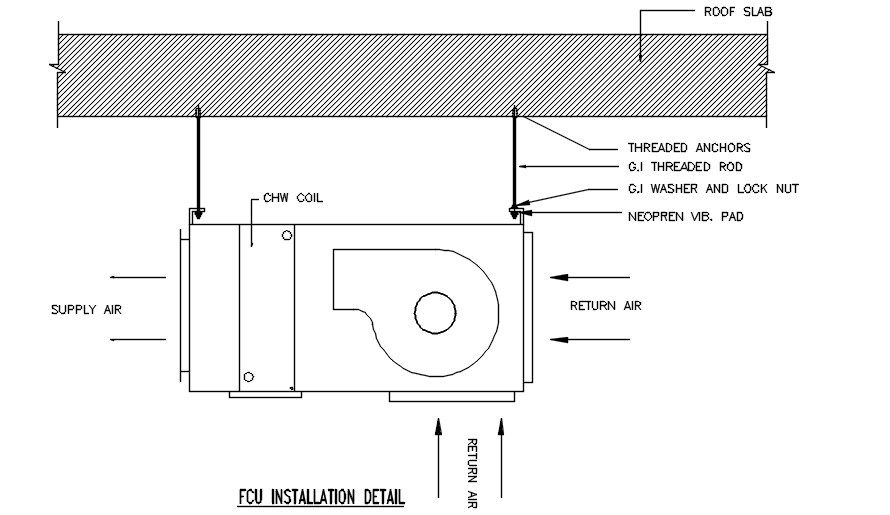

FCU installation detail is given in this Autocad file. Supply air, return air, CHW coil, roof slab, threaded anchor, threaded rod, washer & lock nut and neopren vibration pad are specified clearly in this drawing model. Download the 2D AutoCAD DWG drawing file. Thank you for downloading 2D AutoCAD DWG drawing file and other CAD program files from our website.




File Type: DWG File ID: 170106
