Water Tank Stand CAD Drawing with Complete Structural Support Layout

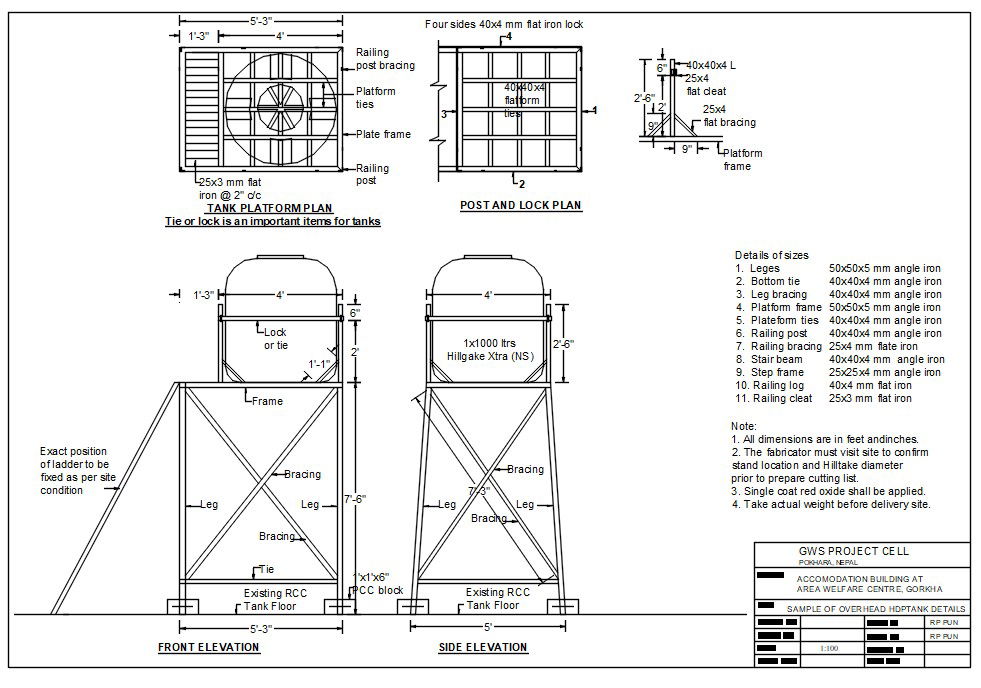

This AutoCAD drawing provides a detailed water tank stand design for residential and commercial applications, featuring accurate dimensions, support structure, and load-bearing details. The file includes precise measurements for base supports, column spacing, and tank platform alignment, ensuring structural stability and efficient construction planning. Civil and structural engineers can use this drawing to visualize fabrication requirements, material placements, and reinforcement points for safe and reliable water storage solutions. The CAD file also presents sectional views of the stand, illustrating height, platform thickness, and overall proportions for accurate drafting
