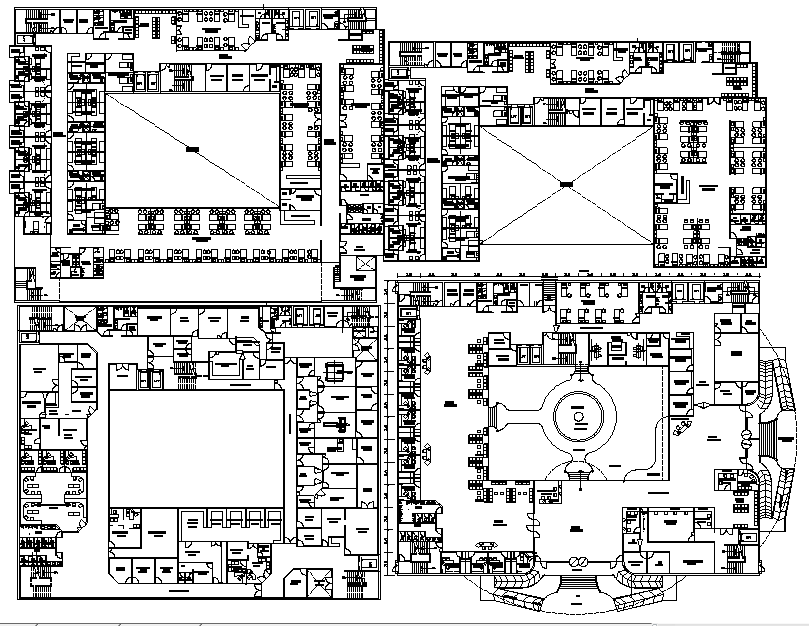

Hospital CAD Drawing Floor Plan Elevations and Section Details

The hospital CAD drawing floor plan, elevations, and section details also include sectional views showing vertical building relationships such as floor levels, wall thickness, roof structure, staircases, and elevator cores. These sections help professionals understand internal spatial organization and structural connections for accurate construction execution. Compatible with AutoCAD, this file serves as a valuable resource for architects, civil engineers, interior designers, and healthcare facility developers who require precise CAD documentation for hospital design, planning, and construction. It ensures effective architectural detailing, improved space planning, and seamless implementation of healthcare projects.
