Filter Battery CAD Drawing Detail with Pipeline Layout Design

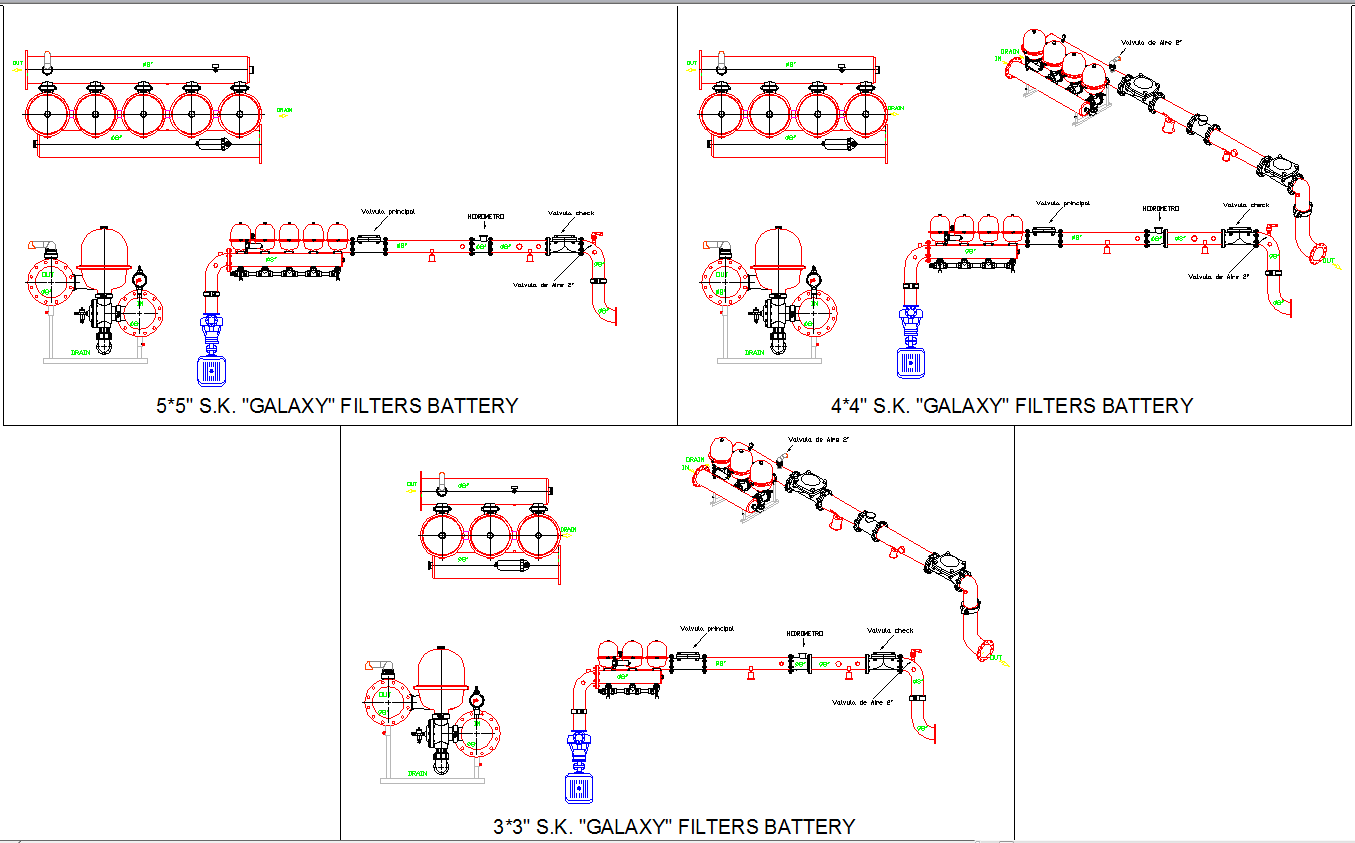

Filter battery CAD drawing detail illustrating a complete filtration system layout used in water treatment and industrial pipeline systems. The drawing includes detailed views of filter battery arrangements with multiple filtration units connected through pipeline networks. It shows essential components such as valves, gauges, pressure indicators, connectors, and control elements used for monitoring and managing the filtration process.
