Roof Layout Design CAD File with Detailed Framing and Connection

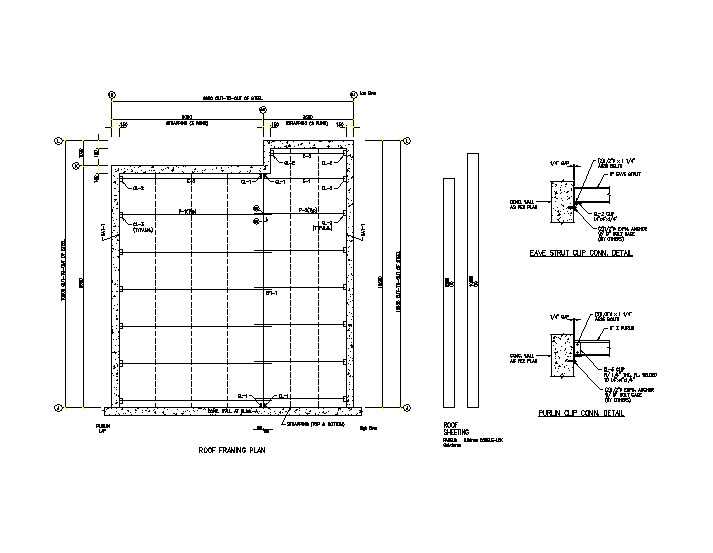

This Roof Layout Design CAD file provides a complete and detailed plan for residential and commercial roof framing, including eave struts, purlins, and roof sheet placement. The DWG file contains accurate dimensions, section views, and connection details for all structural elements, ensuring precision during construction and installation. The plan illustrates the placement of beams, columns, and supports, along with detailed joint connections for eave strut and purlin clip connections.
