Three Bedroom Bungalow 8.4m x 8.7m Floor Plan AutoCAD file and DWG

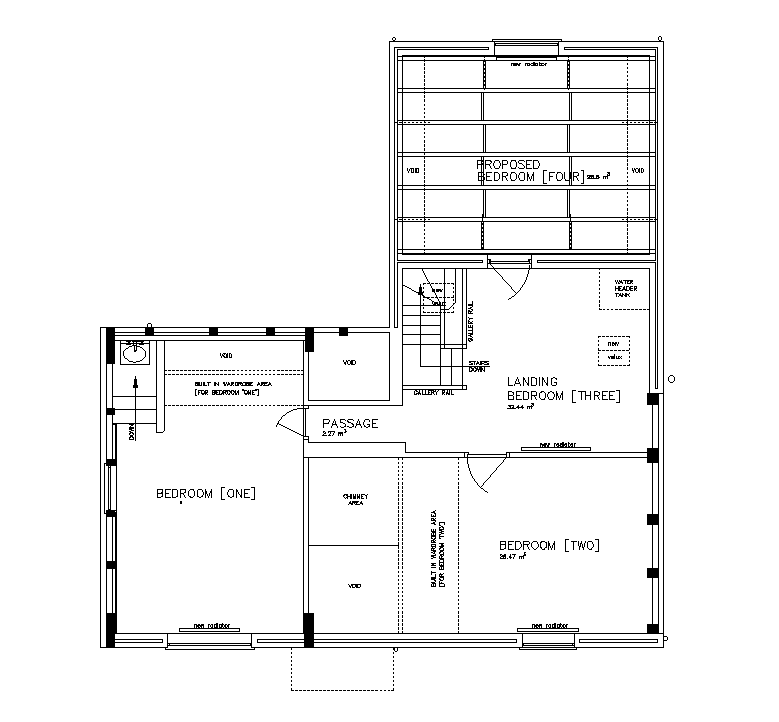

The Three Bedroom Bungalow 8.4m x 8.7m Floor Plan DWG is designed with accurate internal layout and dimensional clarity. This 2D AutoCAD drawing presents Bedroom One, Bedroom Two 8.4m², Bedroom Three 12.4m², and a Proposed Bedroom Four 20.8m², clearly separated with wall thickness and structural alignment. The layout includes a 2.27m wide passage, stair down detail, gallery rail, water header tank position, built-in wardrobe areas, chimney space, and radiator placements. Each room is defined with proper door swing direction, window openings, void spaces, and circulation flow to ensure functional residential planning.
