Wood Joist and Wood Studwall Joinery Detail AutoCAD DWG Drawing

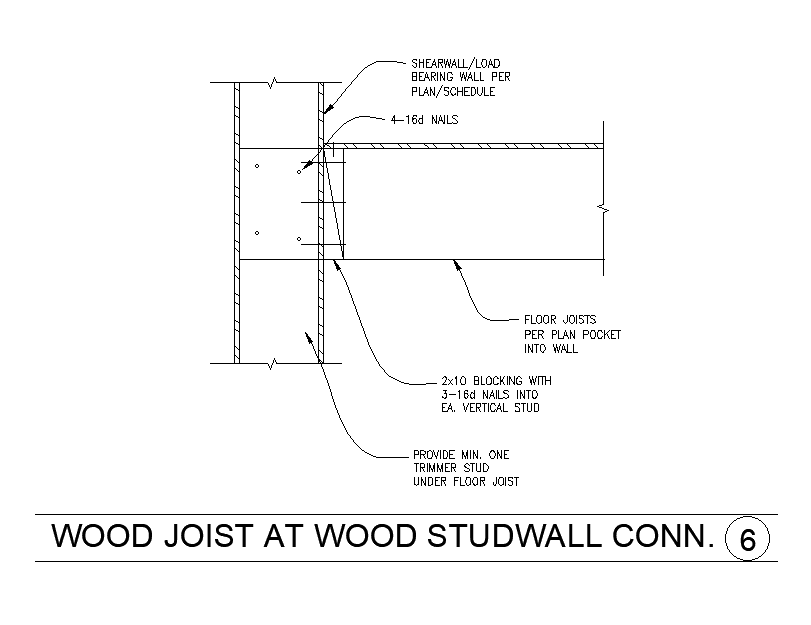

 This detailed AutoCAD DWG file shows the wood joist and wood studwall joinery detail used in structural and architectural construction drawings. This CAD drawing illustrates the connection between floor joists and wood stud walls, including shearwall load-bearing wall placement, joist pocket connection, blocking arrangement, and nail fixing details. The drawing clearly indicates 4 16d nails, 2x10 blocking with 3 16d nails into each vertical stud, and the provision of a minimum one trimmer stud under the floor joist for proper load transfer and stability. All structural components are arranged with clear annotation and dimensional references to support accurate construction and detailing.
