Footing plan and section view is given in this Autocad drawing model. Download now.
Tags
#Footing plan and section view#24x12m residential house plan#Ground & first floor house plan#G+1 house plan#houses with 3BHK#3BHK house plan#Autocad model#2D model#Autocad DWG drawing file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

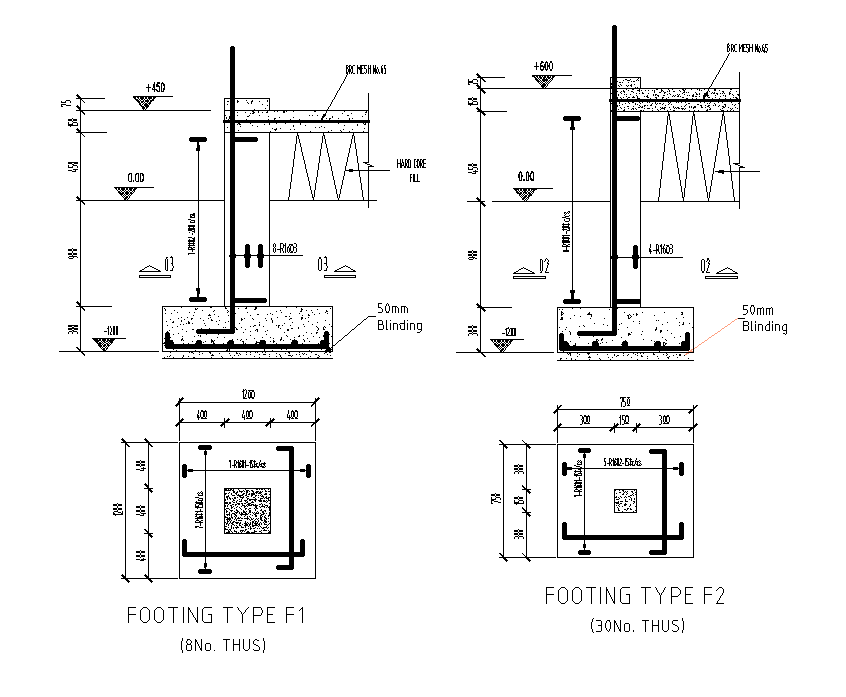

Footing plan and section view is given in this Autocad drawing model. This is given for 24x12m residential house plan. The dimension of first and second footing is 1.2x1.2m and 0.75x0.75m respectively. 50mm blinding is provided for each section. For more details download the autocad drawing file. Thank you for downloading the Autocad file and other CAD program files from our website.
