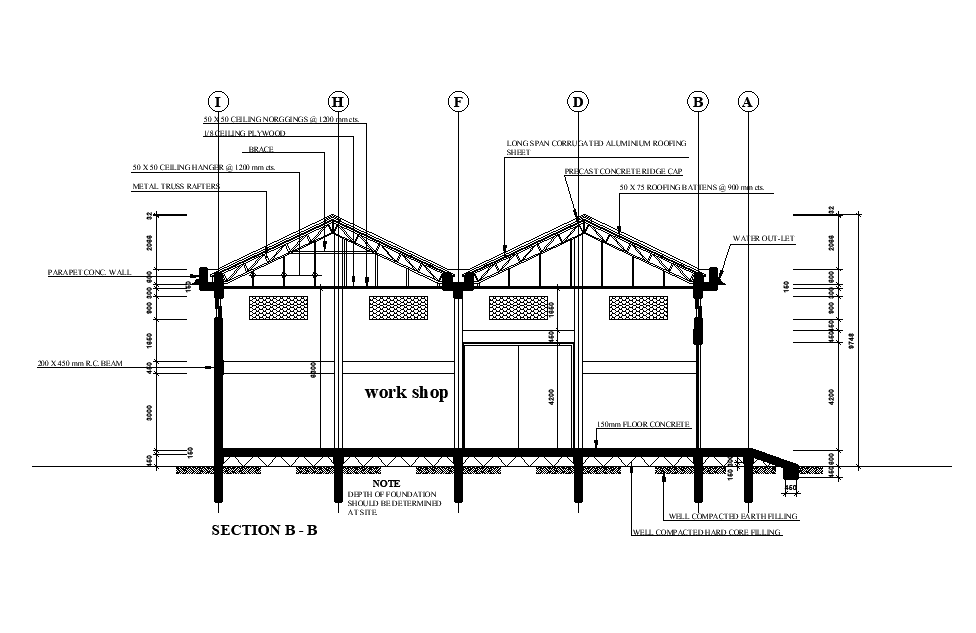

A section B to B view of 14x19m work shop plan is given in this Autocad drawing file. Download now.


Description

A section B to B view of 14x19m work shop plan is given in this Autocad drawing file. The total height of the building is 9.7m. This is G+1 work shop plan. Material details are given in this section drawing. Work shop, general office, workers changing room, store room, lobby, shower & water closet for workers, entrance platform, and visitor’s water closet are available in this ground floor. Waiting terrace, secretary office, director office with attached water closet & shower are available in this first floor. For more details download the Autocad drawing file. Thank you for downloading the Autocad file and other CAD program files from our website.




File Type: DWG File ID: 174091
