A section view of 5 column details is given in this Autocad drawing file. Download now.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

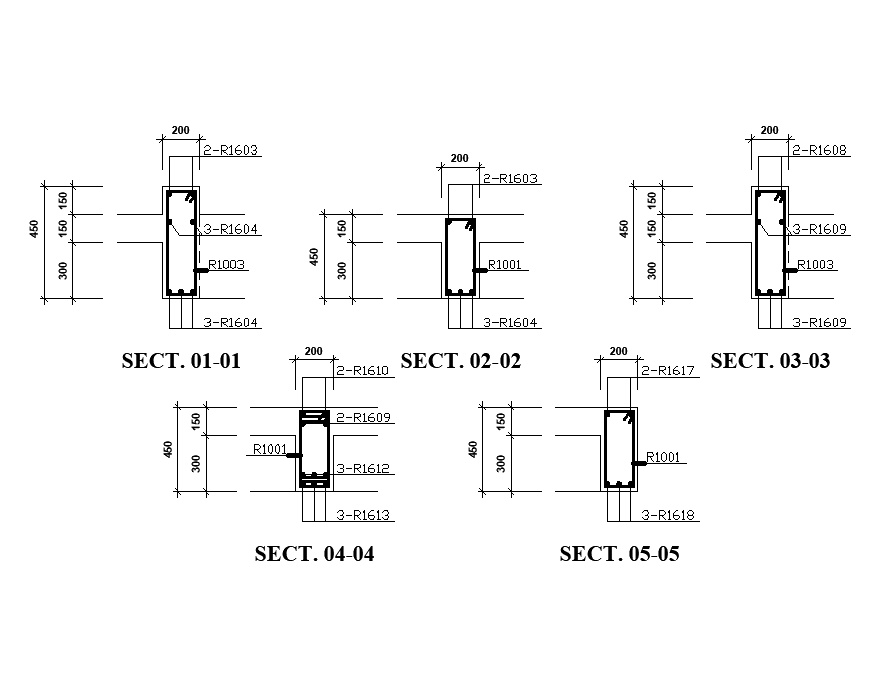

A section view of 5 column details is given in this Autocad drawing file. These columns are given for 14x19m work shop building. The section dimension of column1,2,3,4, & 5 is 200x450mm, 200x450mm, 200x450mm, 200x450mm and 200x50mm respectively. Numbers of bars are given in this cross section. For more details download the Autocad drawing file. Thank you for downloading the Autocad file and other CAD program files from our website.
File Type:
DWG
File Size:
1.8 MB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Tags
#A section view of 5 column details#14x19m ground floor work shop plan#G+1 work shop plan#14x19m work shop plan#Autocad file#Autocad DWG drawing file#2D Autocad plan
