23x14m Apartment Beam and Section Plan AutoCAD Drawing G Plus 2

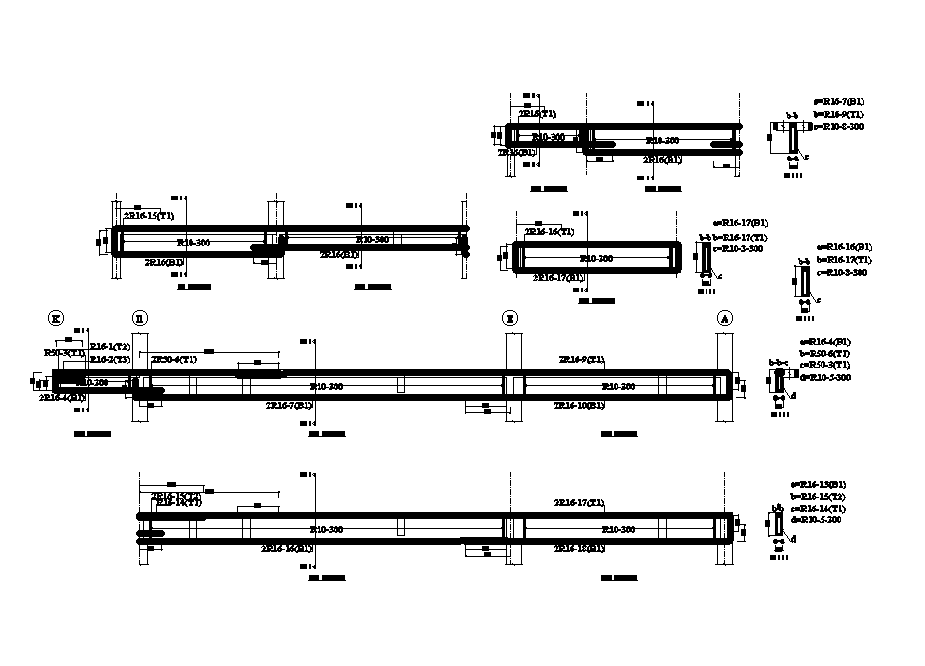

This AutoCAD drawing provides detailed section and beam plans for a 23x14 meter apartment building, accurately prepared for a G plus 2 residential structure. The drawing includes beam layouts along grid lines with clear identification of three different beam details. Each beam is shown with precise length, breadth, section size, and reinforcement specifications, making the file suitable for structural understanding and execution. Dimensional annotations clearly indicate span lengths, beam depths, reinforcement bar arrangement, and spacing, supporting accurate interpretation during construction planning.

The section and beam CAD drawing is useful for civil engineers, structural designers, and builders involved in apartment construction projects. It helps in coordinating beam alignment with columns, slabs, and footing details while ensuring proper load transfer across floors. Reinforcement detailing supports verification of structural strength and compliance with standard construction practices. This AutoCAD DWG file is suitable for drafting, structural review, quantity estimation, and site reference. Downloading this drawing through a Cadbull subscription provides an editable and professional CAD resource that improves efficiency and accuracy in apartment beam and section detailing workflows.
