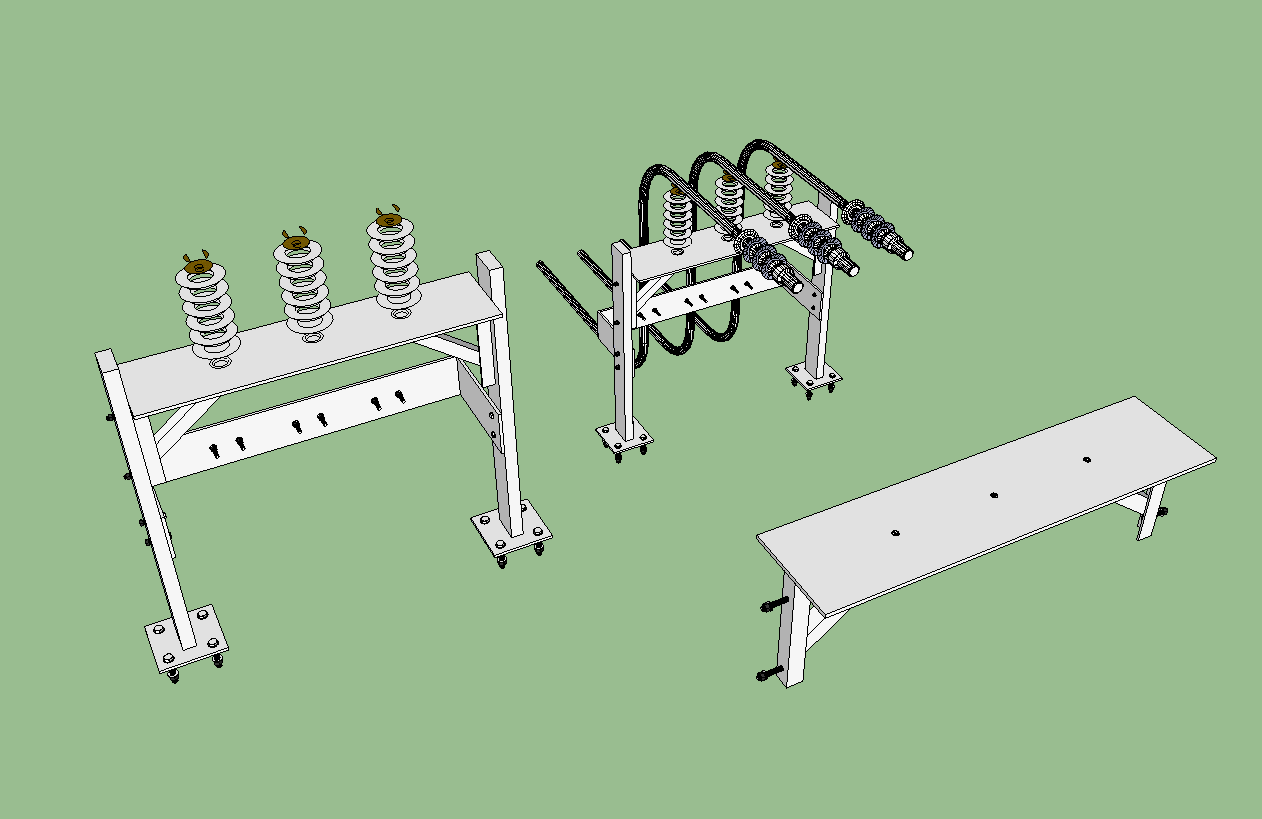

High Voltage Electrical Street Connections CAD Detail with 3D Views

Explore this High Voltage Electrical Street Connections CAD detail in 3D with full dimensions, three?dimensional connection nodes, pole base layouts, conductor routing, insulating supports, clamp positions, and spacing annotations — designed for electrical engineers, MEP designers, architects, civil engineers, builders, and CAD professionals working in AutoCAD, Revit, 3D Max, or SketchUp. This comprehensive CAD file includes scaled 3D views of cable junctions, HV insulator details, transformer hook?ups, concrete pole footing dimensions, conductor clearance measurements, and ground anchor placements. Each element is fully labelled with exact millimeter?based measurements, conductor spacing, support height, pole distance, and bracket sizes to help you streamline your detailing and documentation process. Import the 3D CAD drawing into your BIM or CAD projects instantly and use the dimensioned views, sectional cuts, and measurement callouts to improve project accuracy and site coordination.
