Saddle Support Detail CAD Drawing for Pipe Structural Support

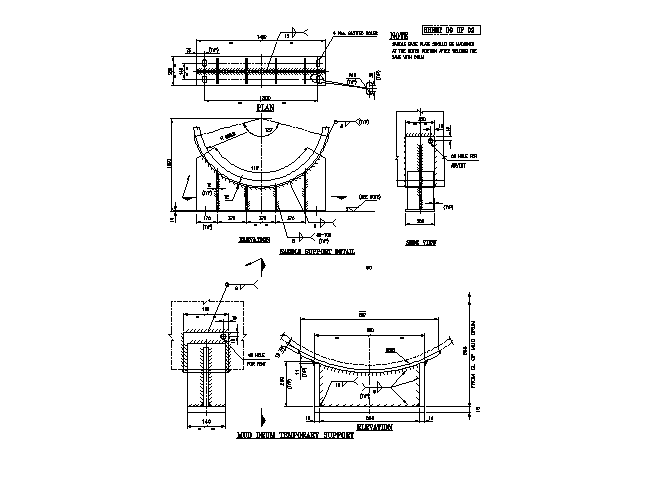

The saddle support detail CAD drawing illustrates the structural support system used for stabilizing cylindrical pipes, drums, or pressure vessels in engineering and industrial installations. Saddle supports are designed with a curved section that cradles the pipe or vessel and transfers its weight safely to a supporting structure or base. The drawing presents the saddle support arrangement, including elevation view, plan layout, and sectional detail required for fabrication and installation. It also indicates the saddle base plate connection, where machining is performed after welding with the drum or vessel surface, ensuring proper alignment and stability of the support structure. These details are important for maintaining proper load distribution and preventing deformation in the pipeline or equipment support system
