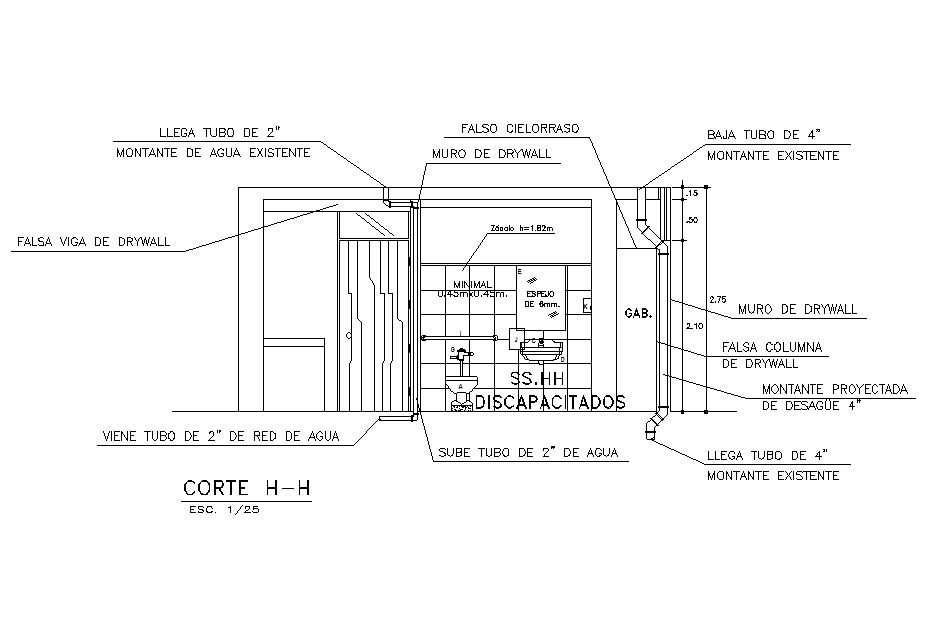

A section view of Plant with layout of walls of toilet has been given in this Autocad drawing file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description
A section view of Plant with layout of walls of toilet has been given in this Autocad drawing file. Total height of the toilet building is 2.75m. The length and breadth of the plan is 9m and 6m respectively. This is given for Airport building. In this separate rest room is provided for disabled person, male & female. For more details download the Autocad file. Thank you for downloading the Autocad file and other CAD program files from our website.
