Steel Beam Connection Detail With W14X30 And W40 Beam Sections

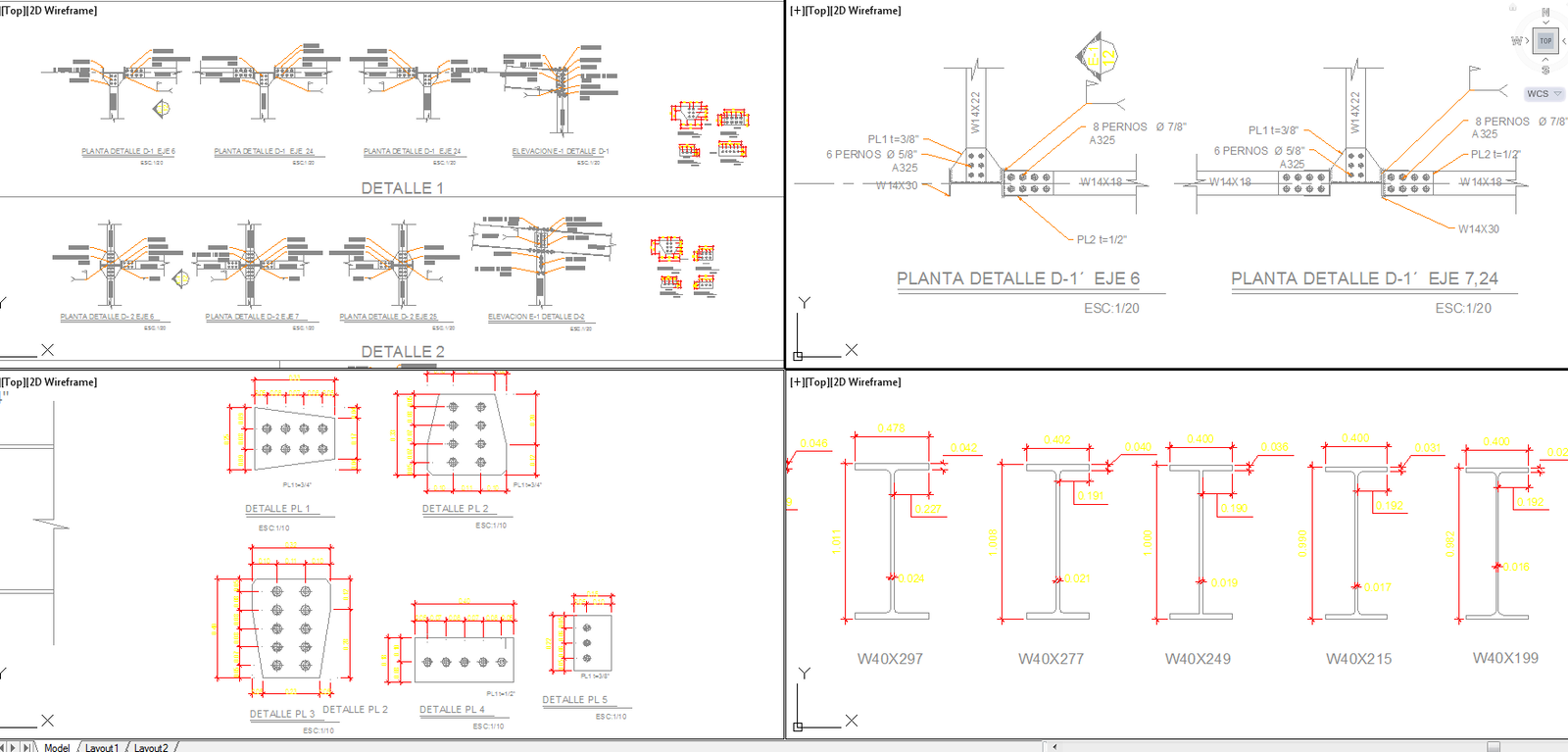

Steel beam connection detail drawing showing structural steel beam layout with W14X30 beam connection and base plate arrangement used in steel structure construction. The drawing includes plan details for axis connections, such as axis 6 and axis 7.24, with steel beam intersection configuration and plate connection system. Structural connection components include PL1 plate thickness 3 by 8 inch, PL2 plate thickness 1 by 2 inch, and high-strength A325 bolts with diameters 5 by 8 inch and 7 by 8 inch used for beam connection. The drawing also illustrates beam to beam joint configuration and connection plate reinforcement used in structural steel frameworks.
