2D Construction Crane Vehicle Elevation Block With Pile Installation

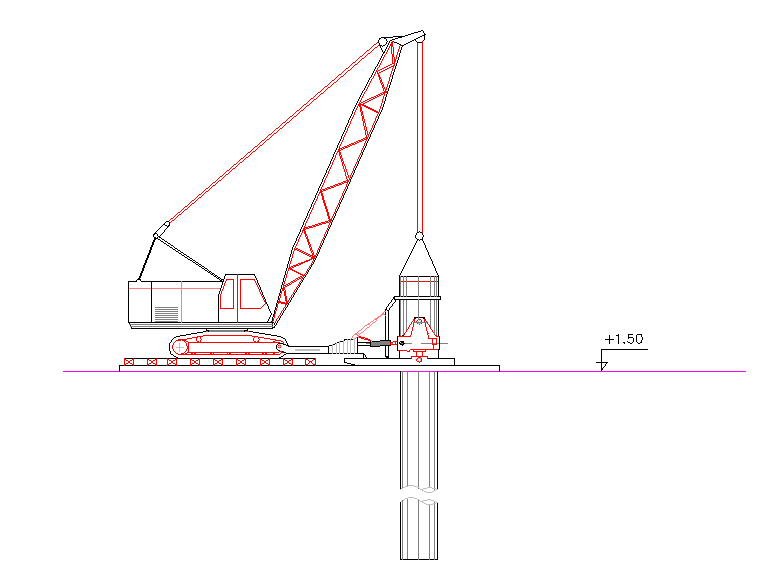

This 2D construction crane vehicle elevation drawing presents a detailed construction equipment block used in engineering and construction site planning. The elevation view illustrates a crawler crane mounted on a tracked base platform positioned on a working surface level marked at plus 1.50 meters. The crane boom structure is designed with triangular steel truss members that support the lifting mechanism during construction operations. A lifting cable is connected to a pile driving hammer attachment positioned above a vertical pile element installed into the ground. The tracked crawler base provides stability for the crane during heavy lifting and pile installation operations within the construction site environment.
