Ladder Elevations And Sectional Detail With Plan Layout DWG Drawing

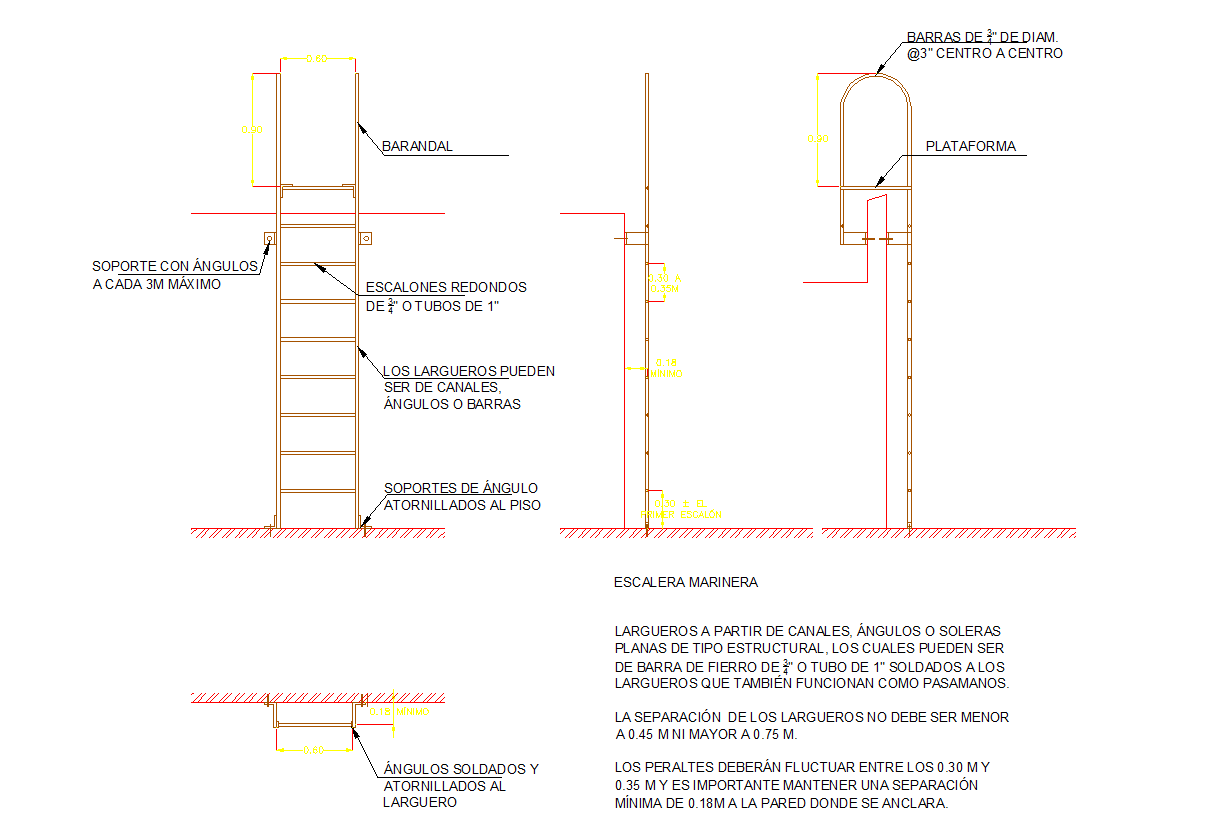

This ladder elevation and sectional detail drawing provides a complete representation of ladder construction with detailed plan, elevation, and section views in AutoCAD DWG format. The drawing illustrates ladder structural components, including rung spacing, side rail dimensions, and support alignment. Elevation views show ladder height, overall profile, and installation context within a building or industrial setup. Plan layout presents a top view of ladder footprint, mounting points, and spatial integration with surrounding structures. Sectional details provide cross-sectional views of ladder rungs, side rails, and connection points, ensuring accurate construction and safety compliance. Measurement references, structural dimensions, and material specifications are included to guide architects, engineers, and builders in precise ladder design and installation.
