Column cum slab structure joining detail is given in this Autocad drawing file. Download the Autocad model.


Description

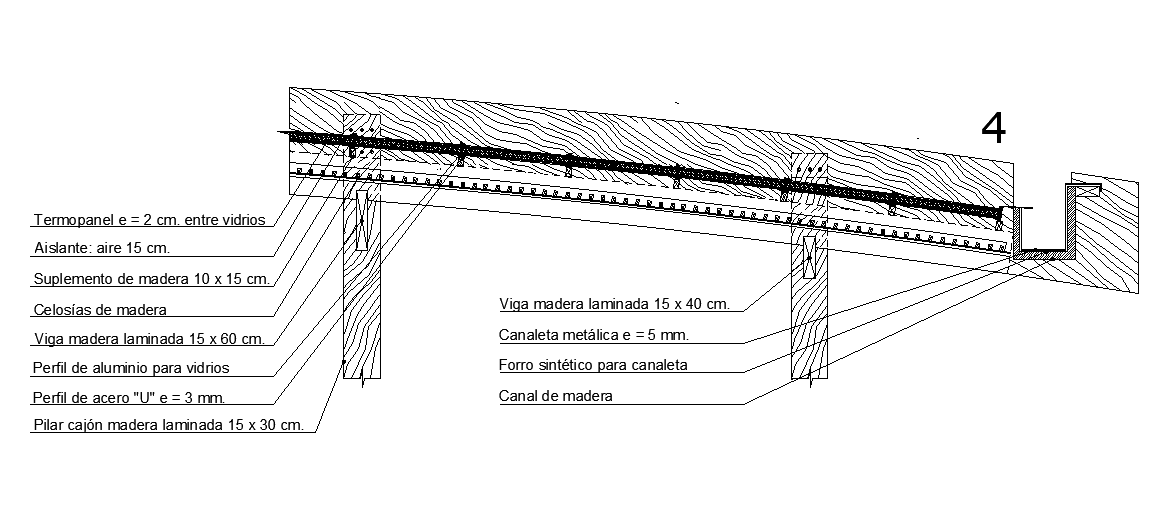

Column cum slab structure joining detail is given in this Autocad drawing file. Material details are given in this model. Galvanized steel profile for joining, termopanel e = 2 cm. Between glass, aluminum profile, hexagonal bolt, insulation: air 15 cm, wood insert 10 x 15 cm, laminated wood joist 10 x 30 cm, wood dowel 20 x 30 cm, hidden steel fitting, laminated wood beam 15 x 40 cm, drawer pillar laminated wood 15 x 30 cm and other details are mentioned. For more details download the Autocad drawing file. Thank you for downloading the Autocad drawing file and other CAD program files from our website.
