40x48 Feet House Back Side Elevation 2D CAD Drawing AutoCAD DWG

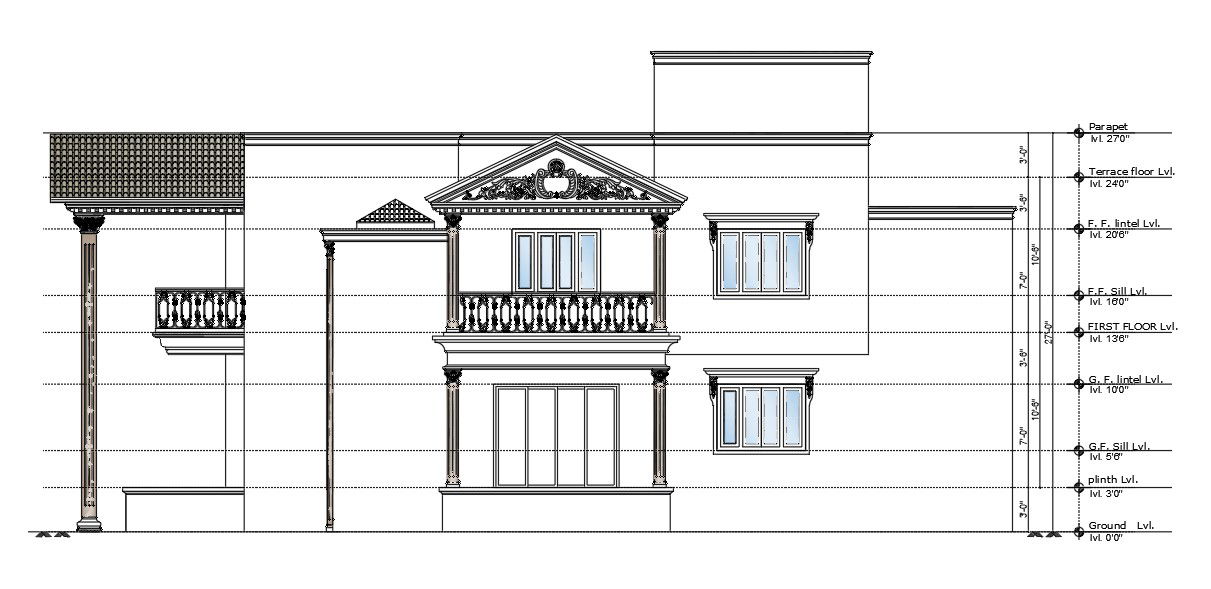

This AutoCAD DWG file provides a detailed back-side elevation of a 40x48 feet residential house, designed for G+1 construction. The drawing includes precise measurements and structural elements to aid architects, civil engineers, and interior designers in planning and visualization. Key features include the kitchen, dining area, drawing room, living hall, common toilet, and master bedroom with attached bathroom. The plan also highlights a kid’s bedroom with an attached toilet, puja room, store room, and balcony, ensuring a comprehensive understanding of the house layout and exterior design.

All levels and dimensions are clearly marked, providing an accurate reference for construction and design. The drawing is suitable for both 2D visualization and integration into larger architectural projects. By using this CAD file, professionals can save time in drafting, maintain accuracy, and ensure consistency across design documentation. The 2D AutoCAD file is now for the fully detailed house back elevation.
