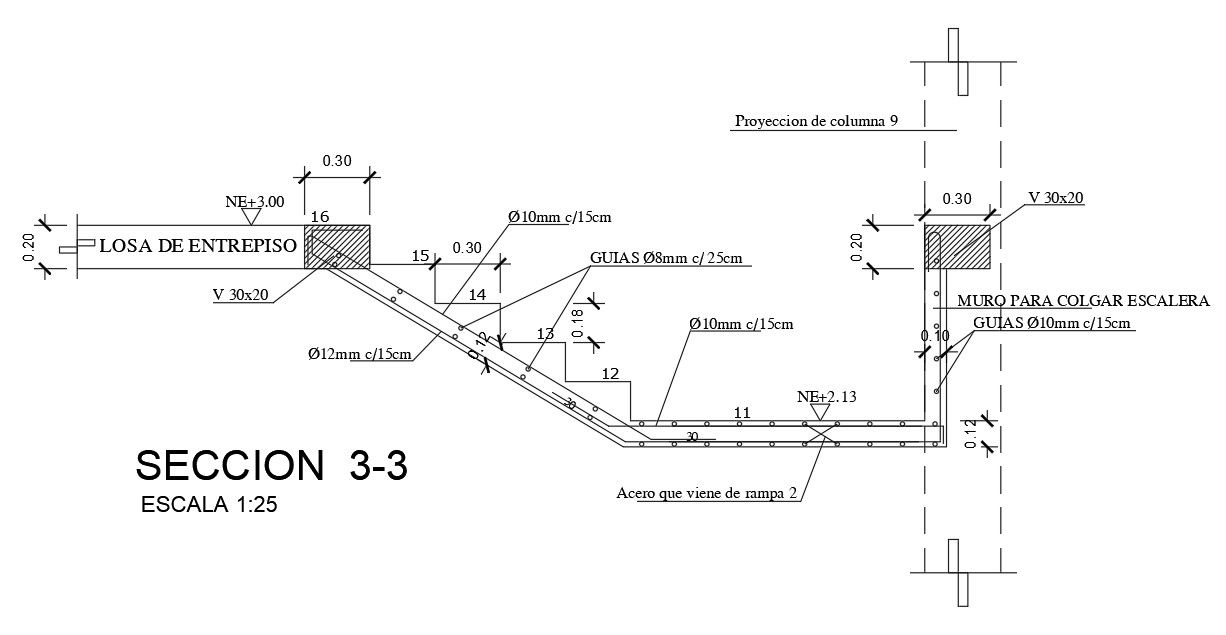

A cut section view with reinforcement detail of 4m length of staircase is given in this Autocad drawing file. Download now.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description
A cut section view with reinforcement detail of 4m length of staircase is given in this Autocad drawing file. Breadth of the staircase is 1m. Thread and riser size is 300mm and 150mm respectively. For more details download the Autocad drawing file. Thank you for downloading the Autocad drawing file and other CAD program files from our website.
File Type:
DWG
File Size:
35 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Tags
#A cut section view with reinforcement detail of 4m length of staircase#A section view of 4m length of staircase#4m length of staircase plan#Autocad drawing file#2D Autocad drawing model#2D Autocad model#DWG drawing file
