Walking Path Section Detail With Ceramic Finish Thermal Layer

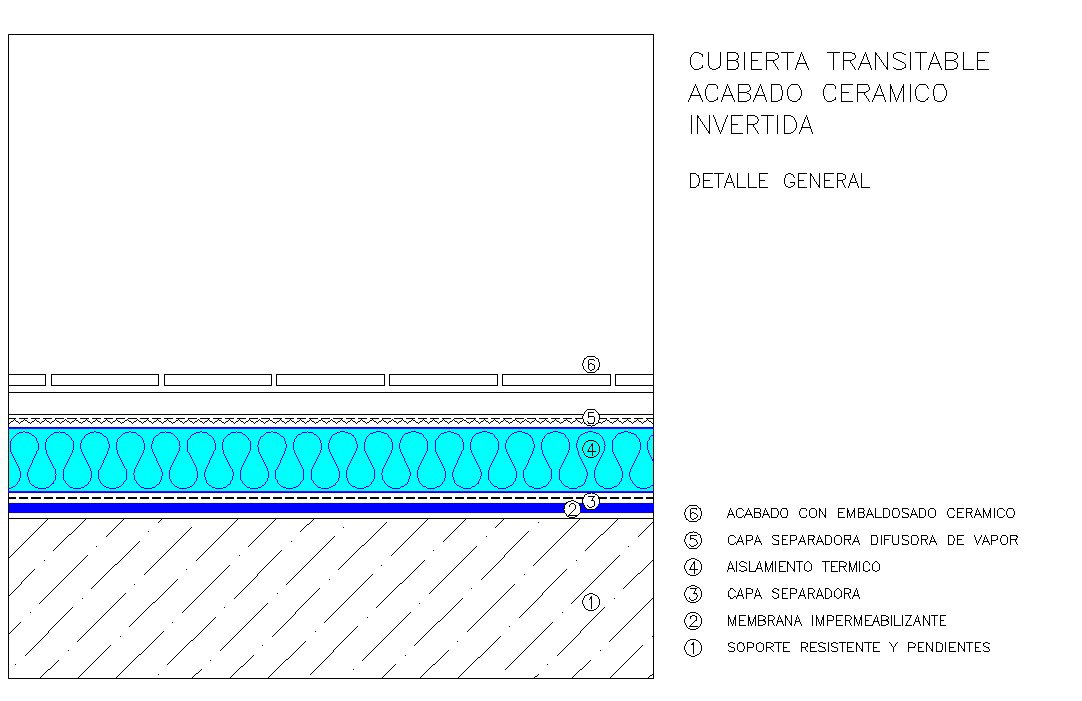

Walking path section detail drawing presenting a civil construction section used for pedestrian surface design and roof walking path development. The walking path sectional detail illustrates a layered construction system including a structural base support layer with slope provision for drainage and load resistance. Above the structural base, a waterproof membrane layer is installed to protect the slab from water penetration. A separation layer is also provided above the membrane to prevent material interaction and to maintain structural durability. The drawing further includes a thermal insulation layer placed above the separation layer to improve temperature control and protect the structure.
