Parasol Shading System Section Detail With Support Arm Panel Layout

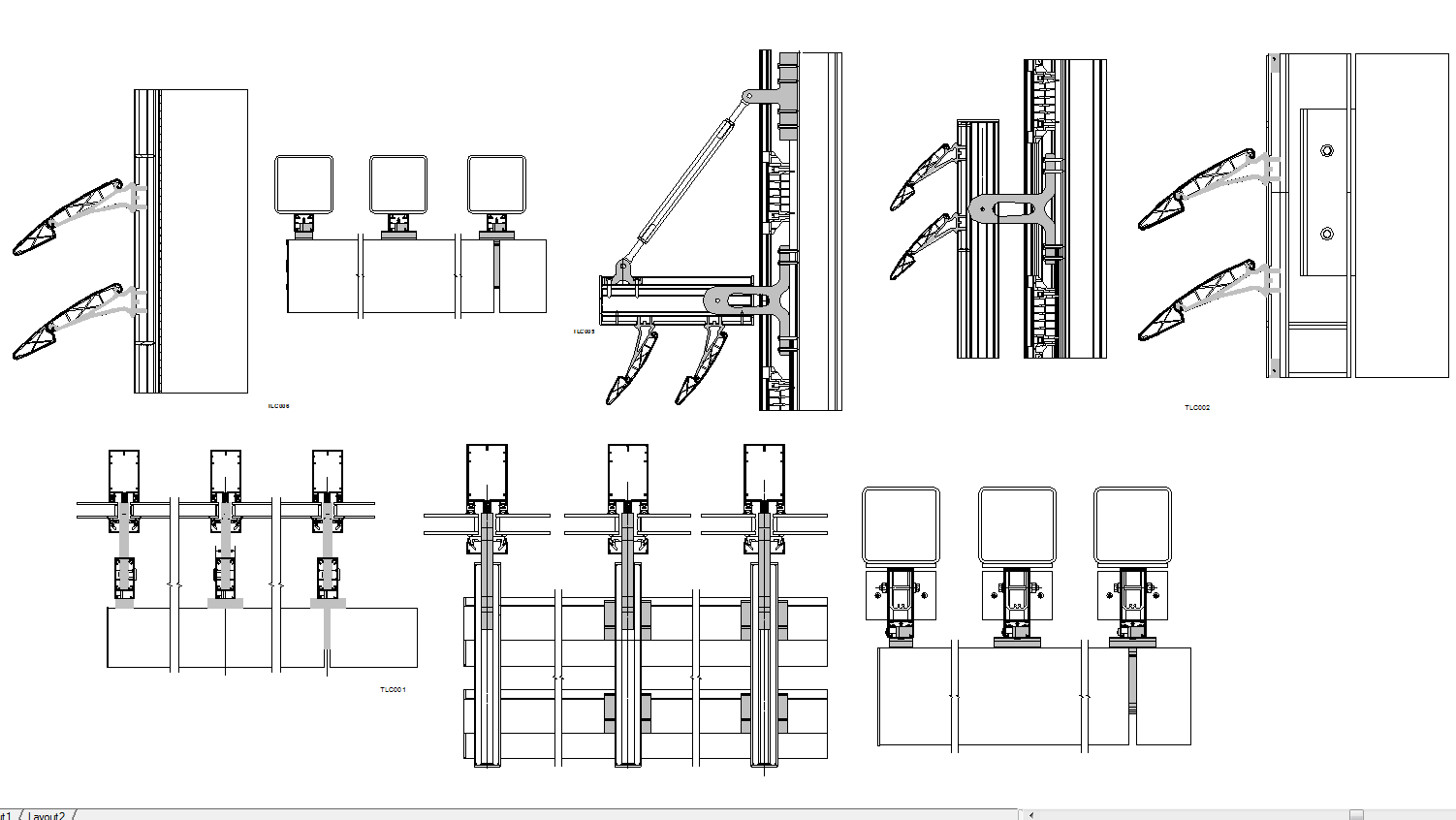

Parasol shading system section detail drawing shows the architectural sun shading structure used on modern building facades to control sunlight and improve thermal comfort. The parasol shading system section detail presents the structural fixing arrangement between the shading arm support brackets and the exterior wall surface. The drawing includes detailed sectional views of the parasol panel connection, mounting plates, hinge mechanism, and support arm installation. Multiple elevation and sectional components illustrate the alignment of the parasol shading system section detail with facade panels, structural frames, and support brackets. This architectural shading detail clearly represents the position of the shading panels, the fixing joints, and the mechanical support elements used for facade sun protection.
