Modern House Design CAD Drawing with Electrical Plan and Elevations

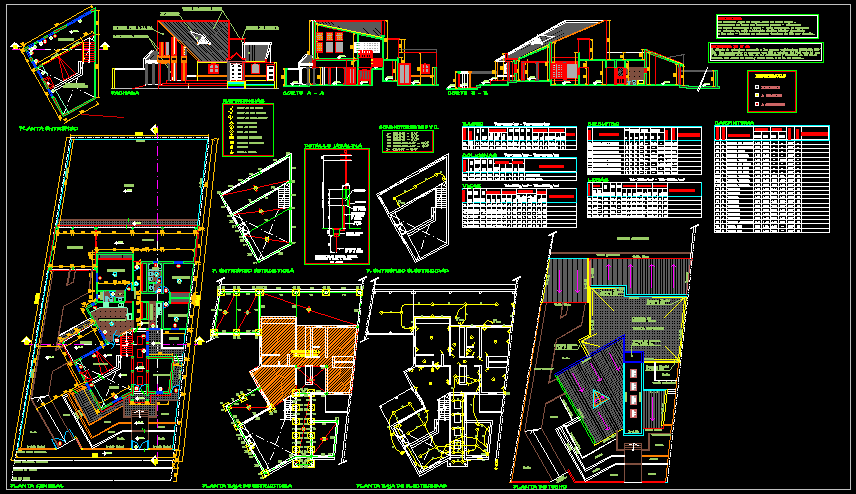

This Modern House Design CAD Drawing presents a detailed architectural layout featuring complete floor plans, elevations, and sectional details. The DWG file includes the ground floor, upper floor, and terrace layout with accurate dimensions and annotations for efficient construction and presentation purposes. Each section has been precisely drafted to highlight spatial planning, structural elements, and interior layouts.

The file also provides a comprehensive electrical floor plan showing switch points, lighting layouts, and power distribution across the house. Alongside, there are side elevations, longitudinal and cross sections, and roof design details that ensure full visualization of the project from every perspective. This design demonstrates the perfect balance between modern architecture and functionality, suitable for residential projects and contemporary housing developments.

Architects, engineers, and interior designers can use this DWG drawing to study modern home structures and create realistic, high-precision residential plans. Download this modern house CAD file today to explore a well-organized plan ideal for professional use, project documentation, and client presentations.
