Solar heat energy collector installation and equipment detail

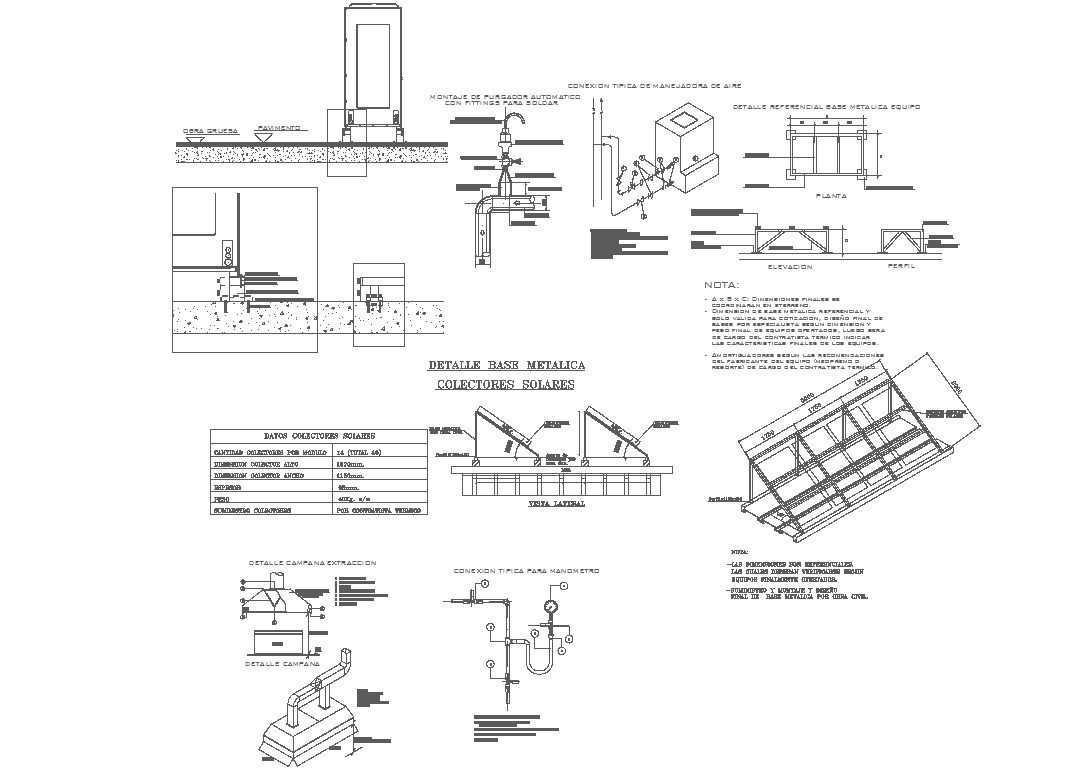

Solar heat energy collector installation drawing showing technical equipment details used for heat energy collection and solar thermal system installation. The drawing includes a solar collector mounting arrangement metal base frame structure, and collector support angles designed for roof or ground installation. Plan view elevation and side profile details illustrate how the solar collectors are positioned on the metal support structure. Dimensions for the collector frame arrangement and base metal structure are provided to explain installation spacing and structural support. In solar energy system drawings and solar collector installation drawings, these technical layouts help engineers and designers understand how heat energy collectors are mounted and supported within a solar thermal system.
