Residential Bedroom Layout Plan 12 x 16 Bedroom Construction Drawing

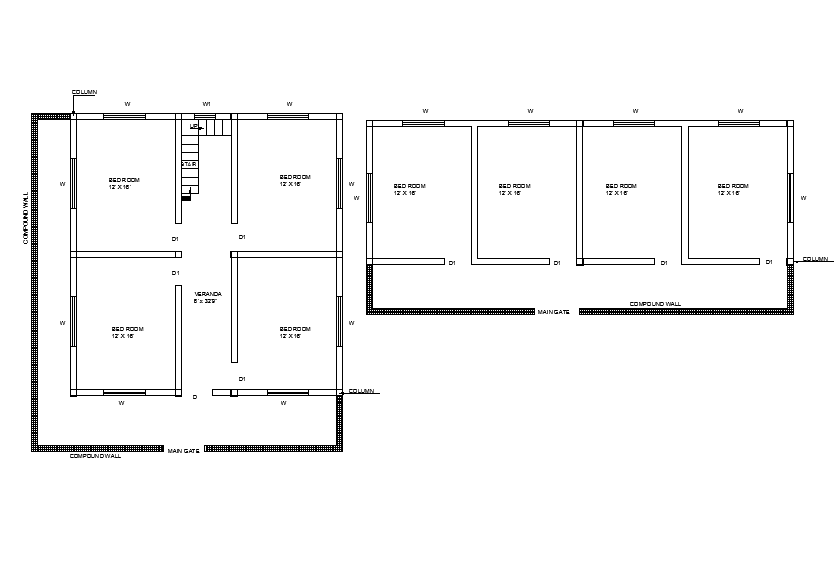

This residential bedroom layout drawing shows types of construction bedroom drawings arranged with clear room planning and dimensional references. The plan includes multiple bedroom layout units designed with a standard bedroom size of 12 x 16. Each bedroom layout drawing presents the internal arrangement of walls, door openings marked as D1, and window positions marked as W that support ventilation and natural light planning. The layout also includes a veranda space measuring approximately 8 x 23.9 and a staircase area positioned centrally to connect the levels of the house. Compound wall boundaries and a main gate location are shown at the site edge, which helps define the building boundary and access point. Column markings and wall thickness lines further explain the structural arrangement of the bedroom construction layout used in residential house planning.
