Balcony Section Structure Detail Reinforced Slab AutoCAD Drawing

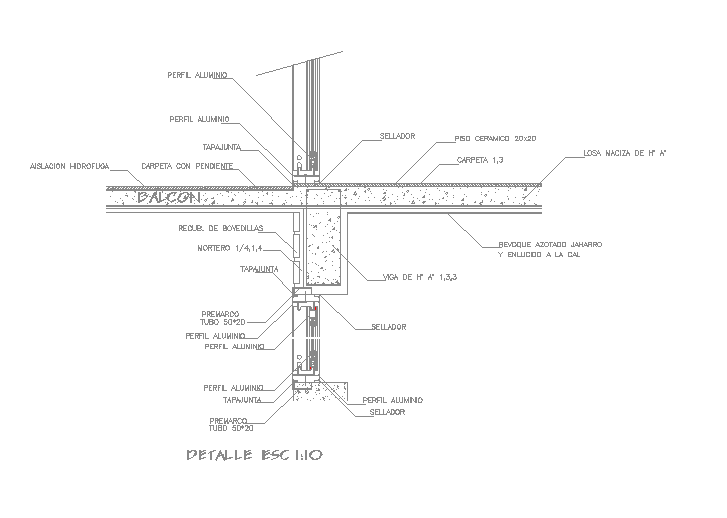

Balcony section structure detail reinforced slab AutoCAD drawing presents a technical, architectural, and structural section showing the construction of a balcony slab connected with the main building structure. This AutoCAD DWG drawing illustrates the reinforced concrete balcony slab with ceramic floor finish of approximately 20x20 cm tiles placed above a sloped cement screed layer designed for proper drainage. The drawing shows structural elements such as reinforced concrete slab, beam connection, and balcony projection integrated with the building floor system.
