Transformer Switchgear Concrete Base Detail AutoCAD Drawings

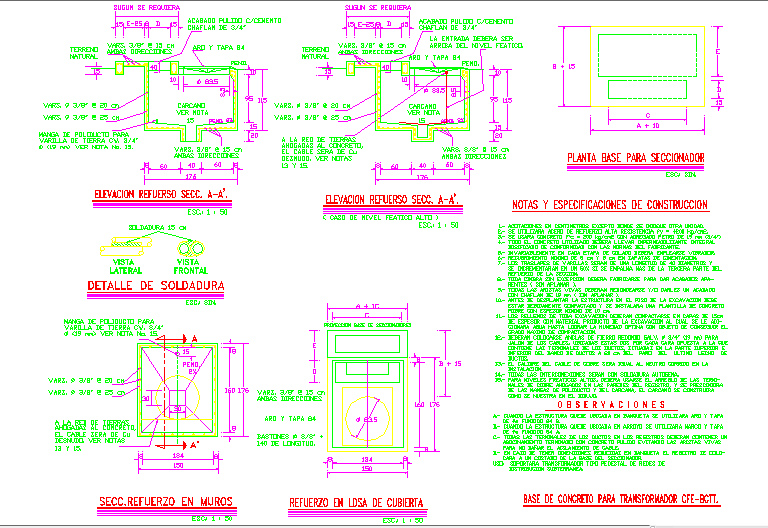

Transformer switchgear concrete base detail AutoCAD drawing presents a structural and electrical installation layout used for mounting electrical transformers and switchgear equipment. This AutoCAD DWG drawing illustrates the reinforced concrete base foundation designed to support electrical transformer and switchgear systems safely. The drawing includes base plan view, reinforcement sections, and elevation details showing reinforcement bars, concrete footing dimensions, and anchor support positions required for electrical equipment installation.
