34x10m House Column Beam Joints AutoCAD Drawing with Details

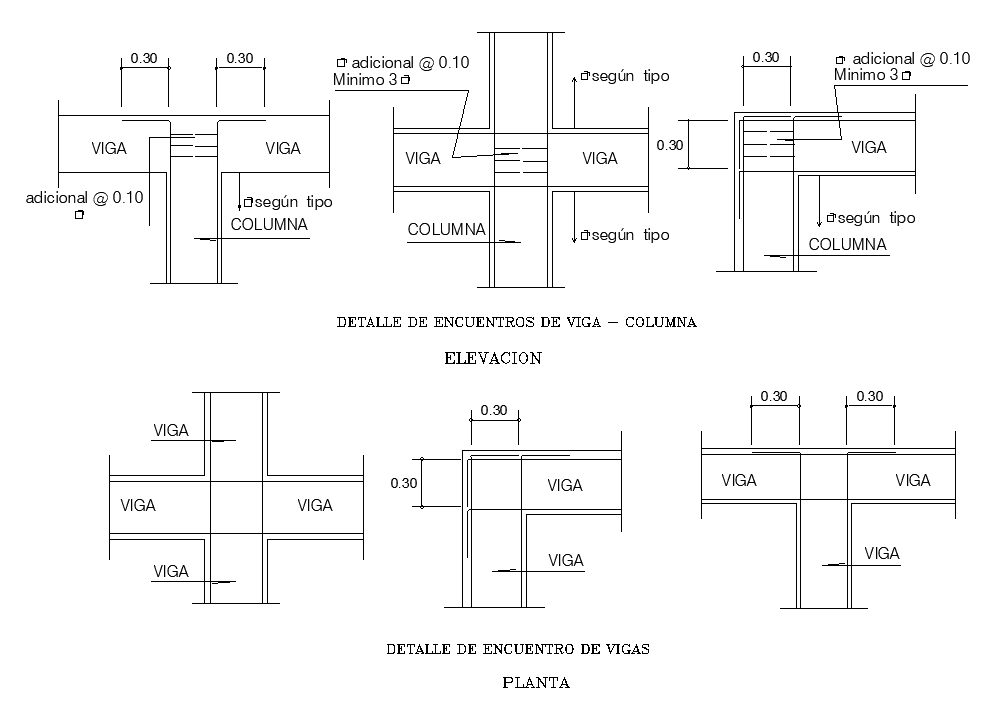

This 34x10 meter house column and beam joint AutoCAD drawing presents detailed structural connection views prepared for residential construction planning. The drawing clearly illustrates beam-to-column joint conditions in elevation and plan, showing proper alignment, junction geometry, and load transfer points. Five different column sizes are detailed to suit varying structural requirements across the house layout. Beam widths and depths are shown with clear dimensions, helping engineers understand joint proportions and structural continuity within the frame system. Reinforcement placement at joints is indicated to support safe and efficient load distribution.

The 2D AutoCAD DWG file is drafted with precise line work, labeled elements, and construction-focused detailing suitable for professional structural documentation. This drawing is ideal for structural engineers, architects, and civil designers working on RCC residential buildings. It supports accurate interpretation of beam-column intersections, reinforcement coordination, and execution clarity at the site. The file can be directly used in AutoCAD and coordinated with Revit, SketchUp, and 3ds Max workflows for detailed structural design development and construction drawings.
