Underground Distribution Pipeline Detail With PVC Duct Layout

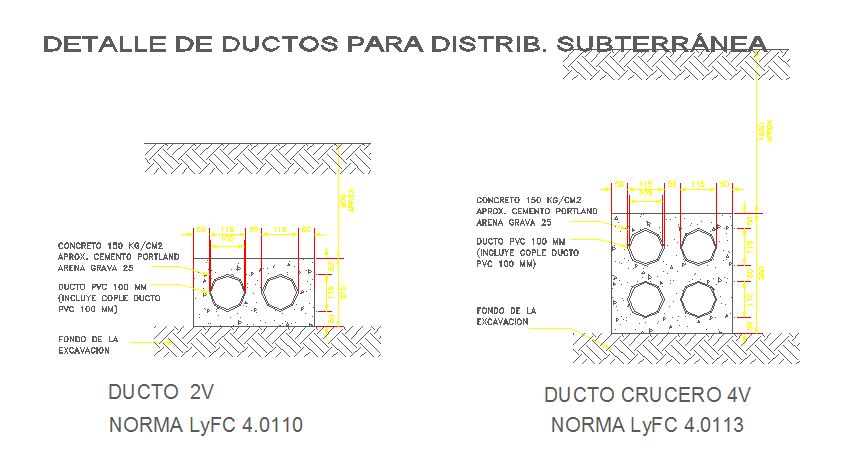

Underground distribution pipeline detail drawing presents a construction layout used for electrical or utility service distribution below ground level. The drawing illustrates an underground distribution pipeline detail with duct arrangement placed inside a concrete protective structure designed for infrastructure safety. The pipeline system includes a PVC duct with one hundred millimeter diameter installed within a reinforced concrete enclosure. Concrete specification in the drawing indicates concrete strength of one hundred fifty kilograms per square centimeter using Portland cement with sand and gravel mix size twenty-five. The drawing also shows the excavation base level and the concrete surrounding that protects the duct system from soil pressure and external load conditions. Dimension references explain duct spacing, alignment, and installation depth used for underground service distribution planning.
