Three Phase Transformer 23 kV 220 127 V 225 kVA Electrical Detail

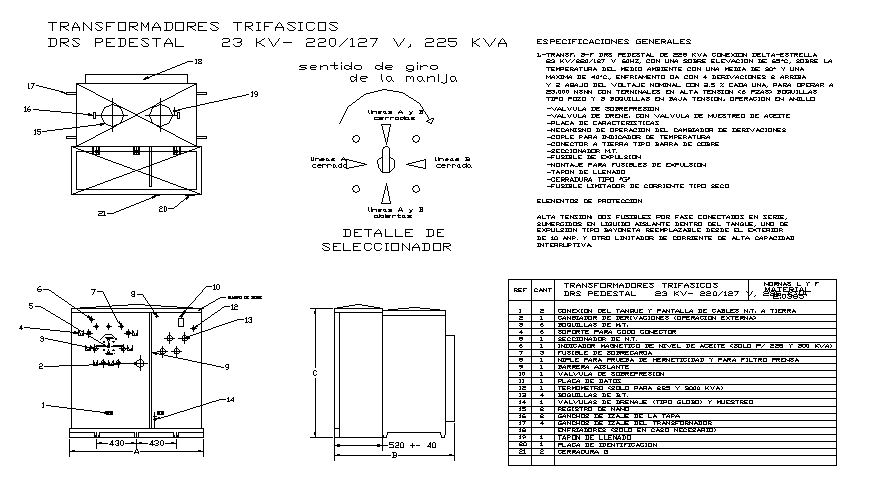

Three phase transformer electrical detail drawing presents a technical layout of pedestal-mounted transformer equipment used for power distribution systems. The drawing illustrates three phase transformer design rated at twenty three kilovolt primary voltage with a secondary output of two hundred twenty slash one hundred twenty seven volt and a power capacity of two hundred twenty-five kVA. The transformer is designed with delta star electrical connection configuration commonly used in electrical distribution networks. The drawing includes pedestal mounted transformer enclosure with front and side elevation views explaining the external structure and equipment arrangement. Dimension references and equipment labeling identify transformer components, including connection terminals, housing enclosures, and protection devices used in the electrical distribution system.
