House Section detail in autocad


Description

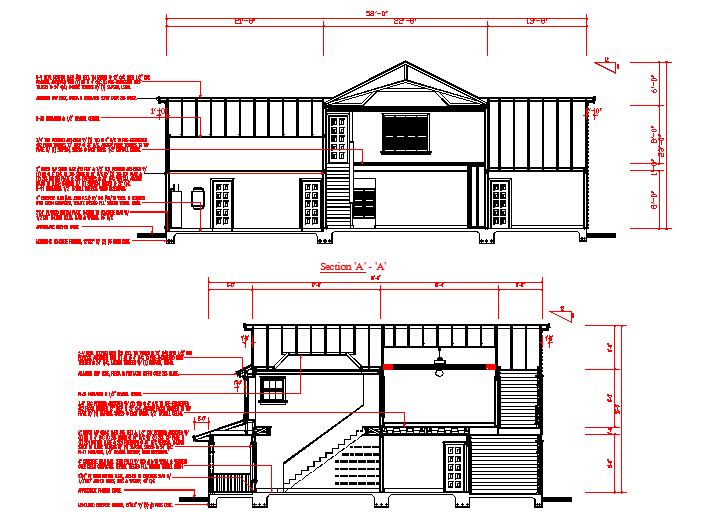

House Elevation detail in cad file, 5-V METAL ROOFING OVER #30 FELT, TIN TABBED @ 12" O/C OVER 1/2" CDX, PLYWOOD, ANCHORED WITH (1) 8D @ 4" O/C TO PRE-ENGINEERED ROOF, TRUSSES @ 24" O/C, ANCHOR TRUSSES W/ (1) SIMPSON, LSTI49.front side design show in this drawing.



File Type: DWG ID: 18594
