Foundation Layout Plan Drawing Free dwg file
Tags
#Foundation Section#foundation plan#autocad drawing#column layout plan
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

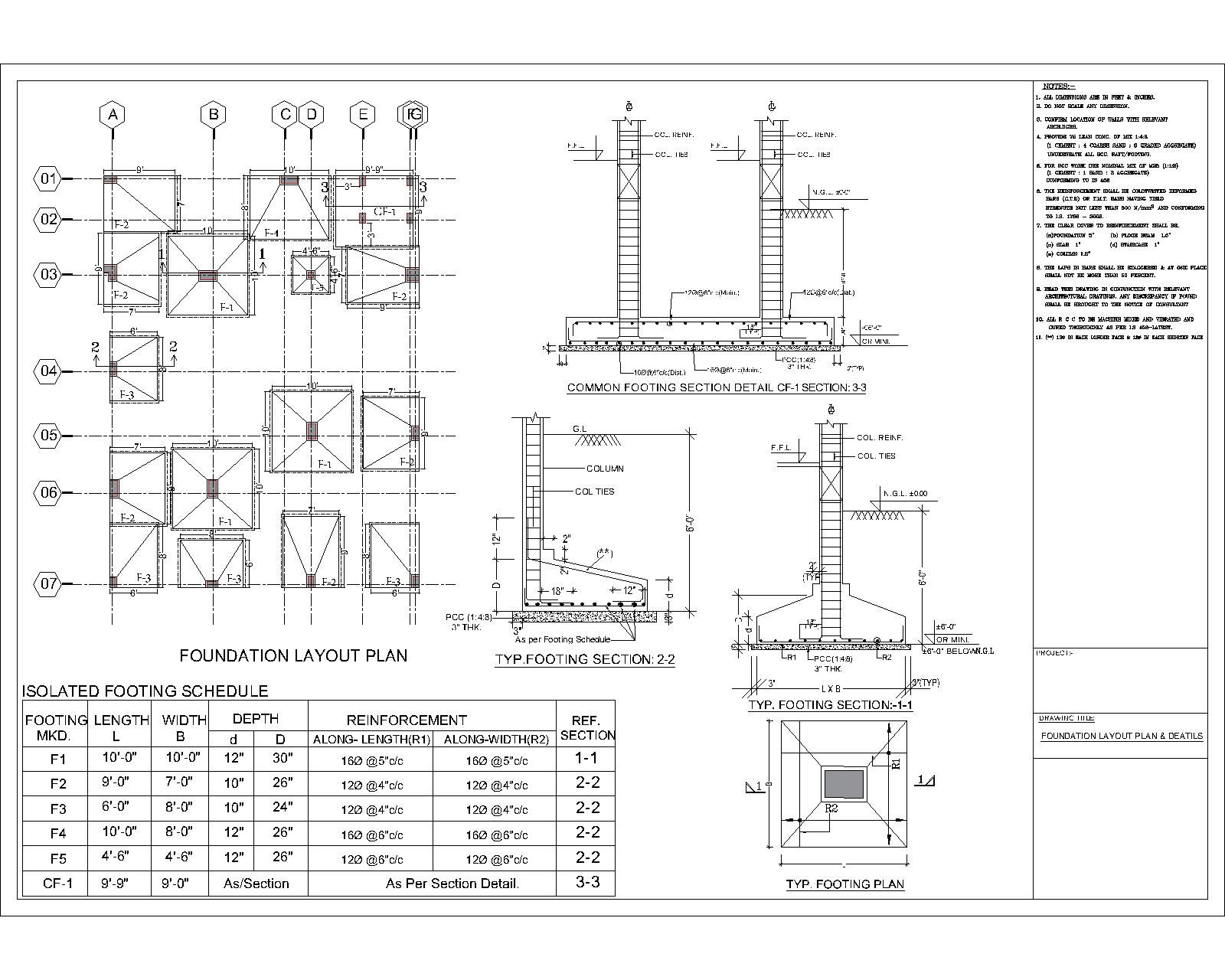

Foundation layout plan with grid marking and complete section details with footing schedule with bar details as per footing load of building. the reinforcement shall be c0ldtwisted deformed bars (c.t.d) or t.m.t. bars having yield strength not less than 500 n/mm and conforming
