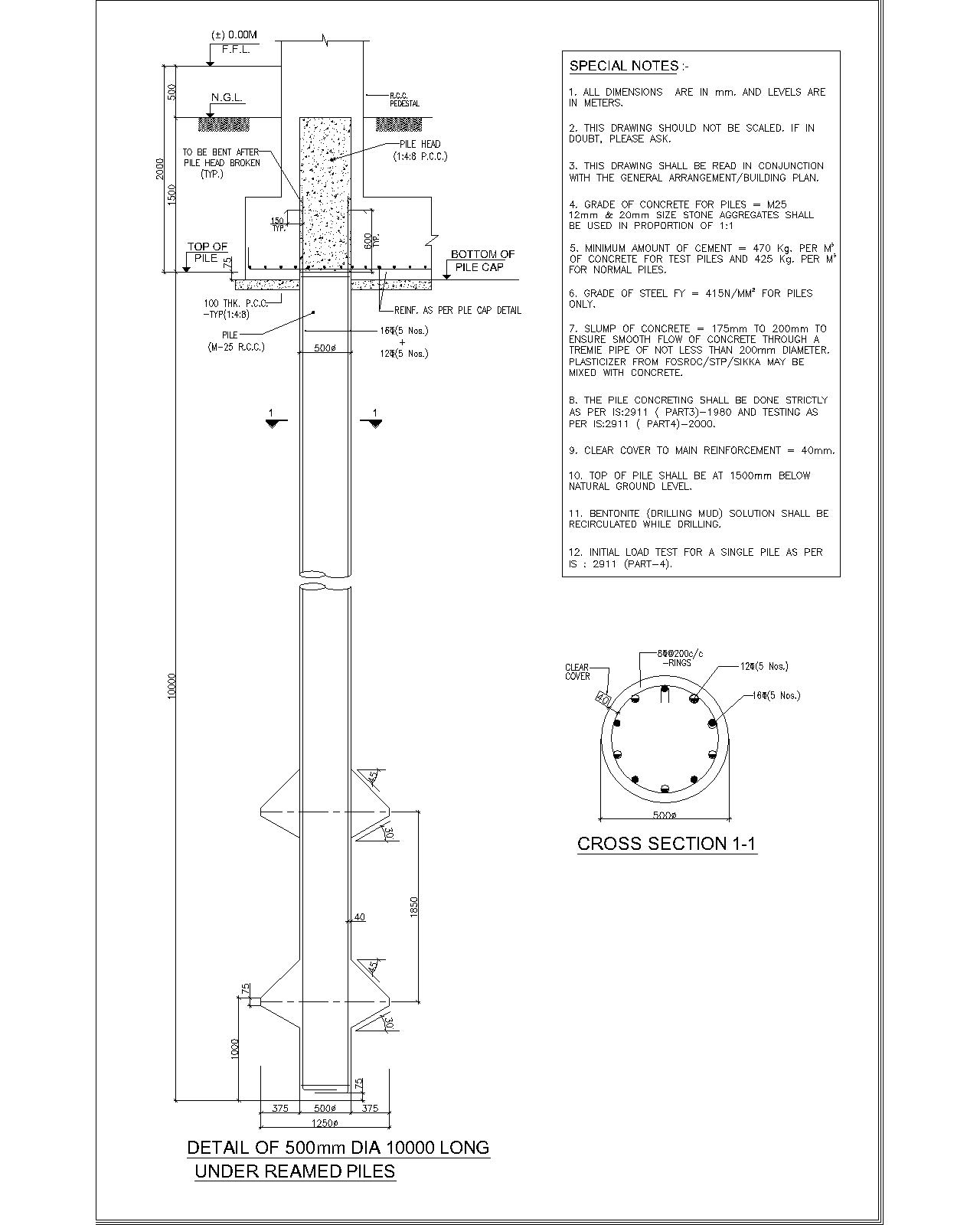

500mm Dia Pile Cap Detail with Section and Rod Details DWG File

This AutoCAD DWG file provides a detailed pile cap drawing, featuring a 500mm diameter pile, rod details, and a pile height of 10000mm. The drawing includes important construction details such as the slump of concrete (175mm to 200mm) to ensure smooth flow through a tremie pipe and the use of bentonite solution during drilling. Ideal for engineers and construction professionals, this DWG file ensures accurate pile construction planning. Download the AutoCAD file to enhance your pile foundation design.
