4BHK House Plan Ground and First Floor Layout with Room Dimensions

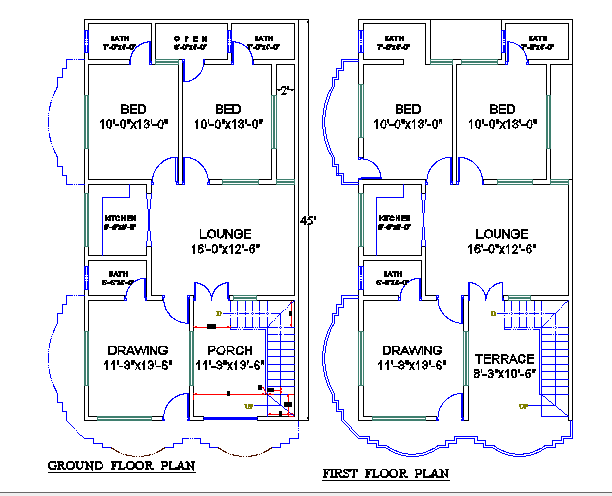

This AutoCAD DWG drawing presents a complete 4BHK house plan with ground floor and first floor architectural layouts designed with clear room measurements. The ground floor plan includes two bedrooms sized approximately 10x13 feet, a drawing room of about 11x13 feet, a central lounge measuring 15x12 feet, kitchen space, attached bathrooms, porch area, and an internal staircase for vertical circulation. All rooms are laid out with proper door swings, wall thickness, and dimensional annotations, making the drawing suitable for residential planning and execution level drawings.

The first floor plan continues the 4BHK configuration with two additional bedrooms of similar dimensions, a lounge area, attached bathrooms, terrace space measuring around 8x10 feet, and staircase connectivity from the ground floor. Each space is proportioned accurately with clear length and width measurements marked in feet, ensuring ease of interpretation for architects and civil engineers. The AutoCAD DWG file is drafted with clean layers and line clarity, supporting use in AutoCAD drafting, Revit reference coordination, 3ds Max visualization, and SketchUp modeling. Access to this detailed house planning drawing through a Cadbull subscription helps professionals save time while maintaining accuracy and consistency in residential architectural documentation.
