320x380mm column base plate detail drawing
Tags
#320x380mm column base plate detail drawing#AutoCAD file#AutoCAD 2D drawing file#AutoCAD model
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

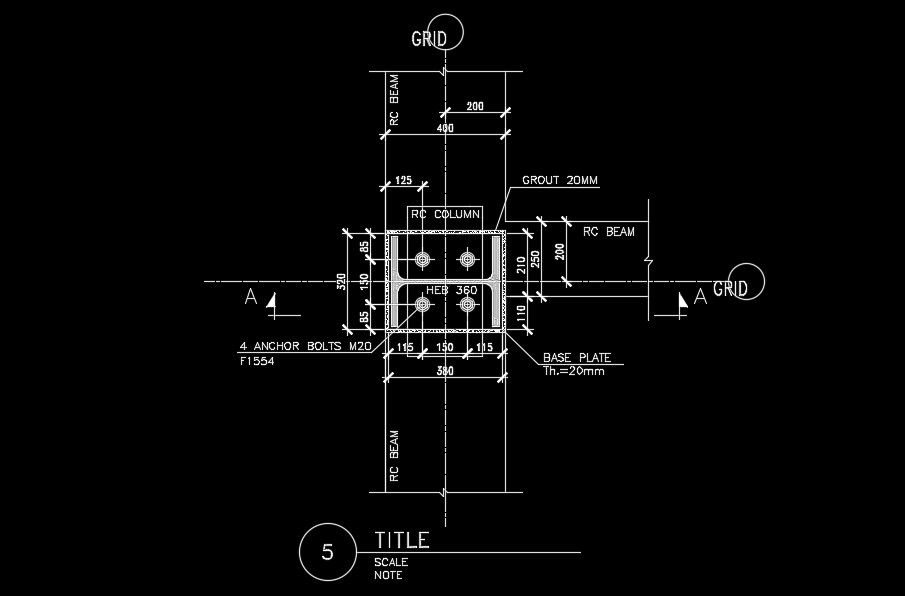

320x380mm column base plate detail drawing is given in this AutoCAD drawing model. 4 numbers of anchor bolts is provided and the bolt size is M20. Thickness of the base plate is 20mm. For more details download the AutoCAD files for free from our website.
