HEA200 anchored RC wall detail drawing
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

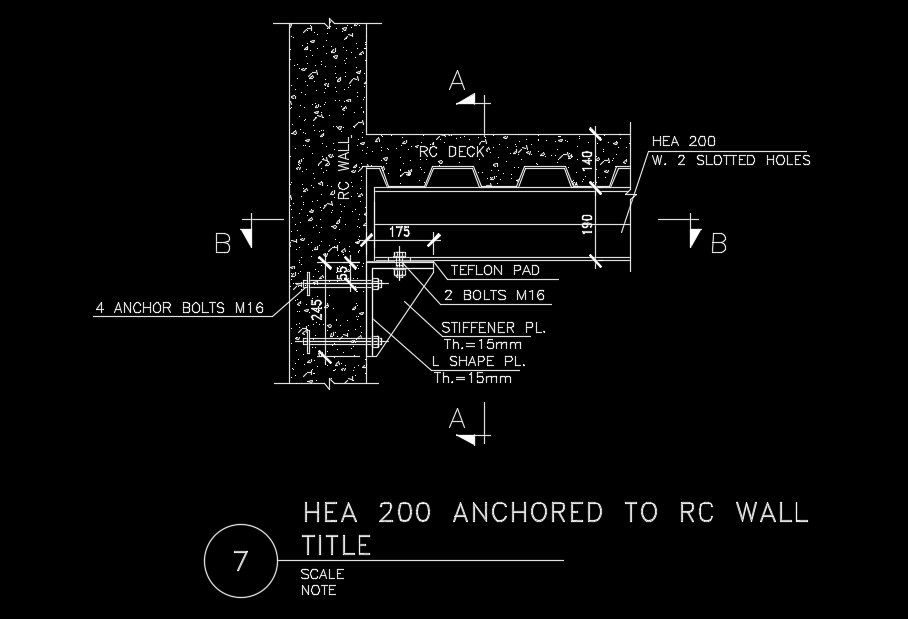

HEA200 anchored RC wall detail drawing is given in this AutoCAD drawing model. 4 number of anchor bots are used. The sizes of the bolts are M16. Thickness of the stiffener plate is 15mm. For more details download the AutoCAD files for free from our website.
Tags
#HEA200 anchored RC wall detail drawing#246x245m industrial plan#AutoCAD file#AutoCAD 2D drawing file#AutoCAD model
