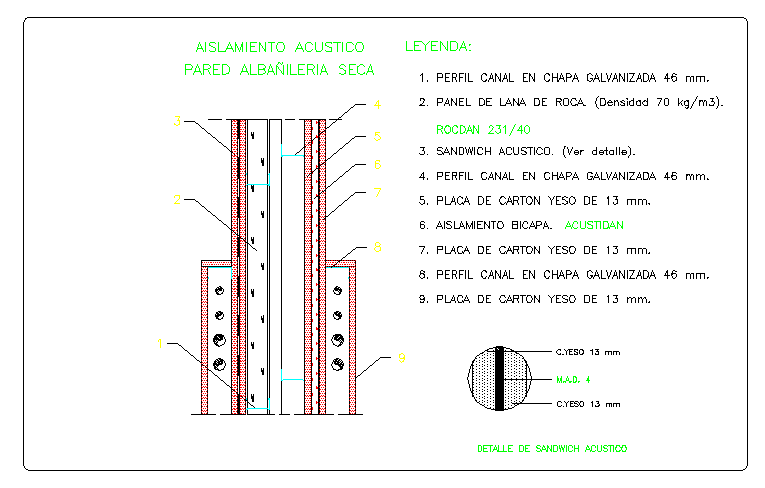

Acoustic Wall Section Detail with Dry Masonry Insulation Layout

This acoustic wall section detail drawing presents a dry masonry wall construction system designed for effective sound insulation in building interiors. The section illustrates a layered wall assembly composed of galvanized steel channel profiles, gypsum board panels of 13 mm thickness, and internal acoustic insulation materials. The drawing clearly identifies each construction component, including metal framing channels, multilayer insulation panels, and gypsum boards that form the acoustic wall structure. The layout also shows the positioning of rock wool insulation panels with density specifications and acoustic sandwich layers that enhance sound absorption and thermal performance within the wall system.
