The right side elevation view of the 15x16m school building drawing Download now

Description

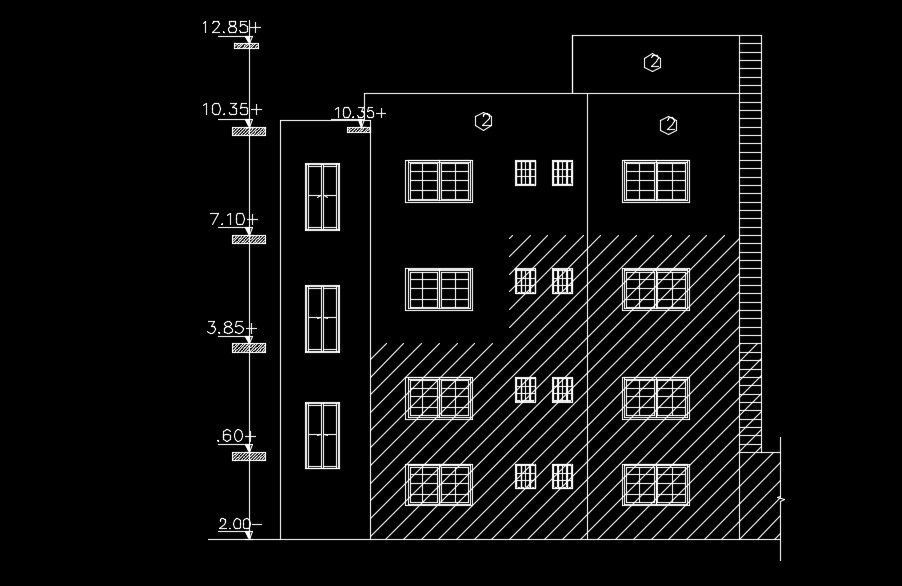

The right side elevation view of the 15x16m school building drawing is given in this AutoCAD file. The total height of the building is 12.85m. On this left side elevation view, doors, and windows are visible. For more details download the AutoCAD file.

File Type: DWG File ID: 186832

Uploaded by:

Meera
India

Download Add to library
