submersible pump Section Detail
Description

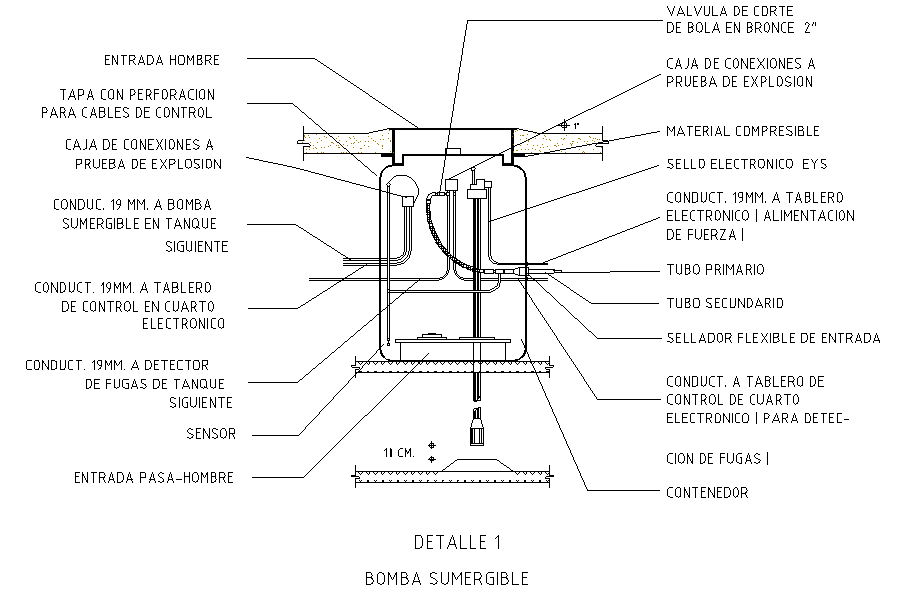

submersible pump Section Detail in Flexible inlet sealer, material compresible, Secondary tube,
Man entrance, Entrance pass man, Conduct. 19mm. To next tank leak detector, Cap with perforation for control cables etc detail in drawing.
File Type:
DWG
File Size:
33 KB
Category::
Mechanical and Machinery
Sub Category::
Other Cad Blocks
type:
Free
Uploaded by:
Priyanka
Patel
