Machinery Part CAD Detail with Section, Plan and Machine Component

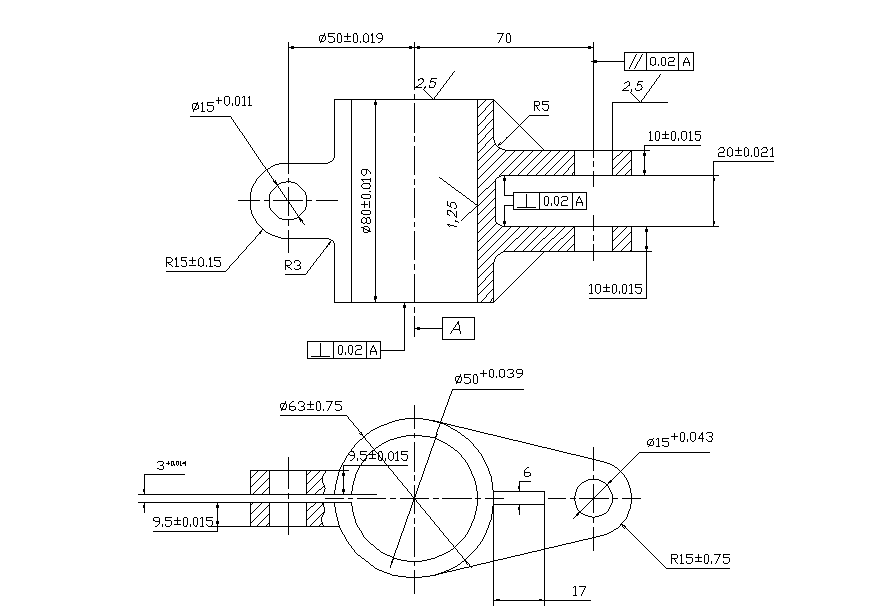

This machinery part CAD drawing provides detailed views of machine components, including sectional and plan layouts for precise mechanical design and engineering applications. The file highlights exact dimensions, tolerances, and assembly positions of each machine part, supporting accurate fabrication and installation. Architects, engineers, and designers can use this CAD file to understand mechanical arrangements, component interaction, and machine functionality. Sectional views show internal structures, while plan layouts illustrate placement, alignment, and connections for efficient assembly. Compatible with AutoCAD, Revit, 3D Max, and Google SketchUp, the drawing allows easy measurement verification, material planning, and project coordination.
