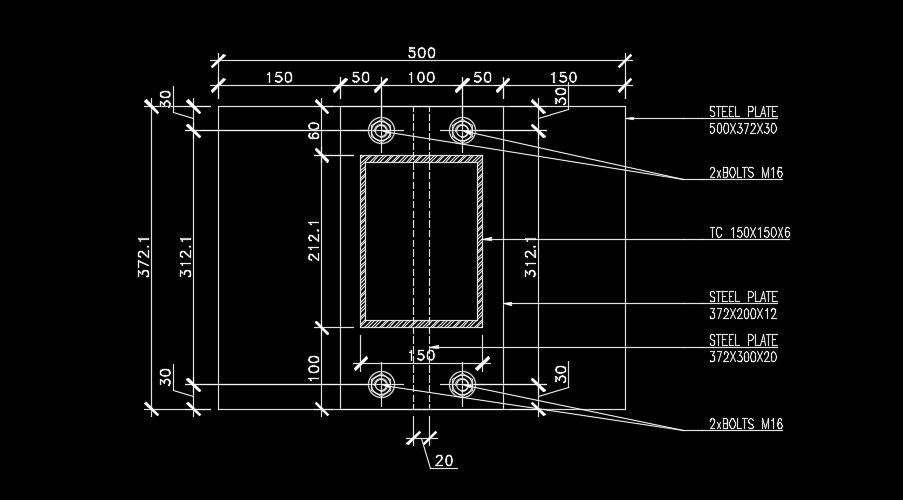

500x317mm footing plan is given in this drawing model

Description

500x317mm footing plan is given in this drawing model. 4 numbers of M16 bolts are provided in this footing. 372x300x20mm steel plate is provided. 25mm grouting is provided. For more details download the AutoCAD drawing file from our website.

File Type: DWG File ID: 188536

Uploaded by:

Meera
India
