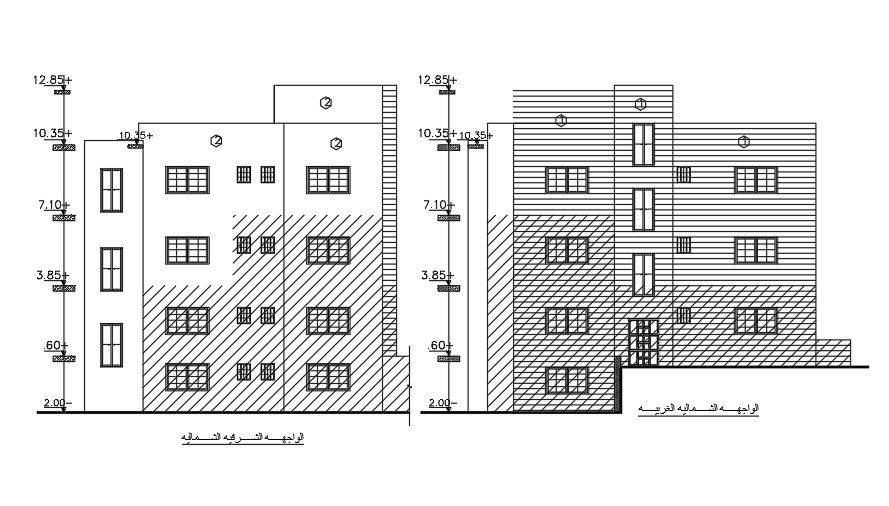

North east façade of the 15x16m school building


Description

North east façade of the 15x16m school building is given in this AutoCAD model. The total height of the building is 12.85m. Five class rooms are available on this second floor. And also, the student’s toilet, and staff toilets are available. The dimension details are mentioned. For more details download the AutoCAD drawing file.




File Type: DWG File ID: 188939

Uploaded by:


Meera
India
