Acoustic Roofing System Detail Drawing with Sound Insulation Layout

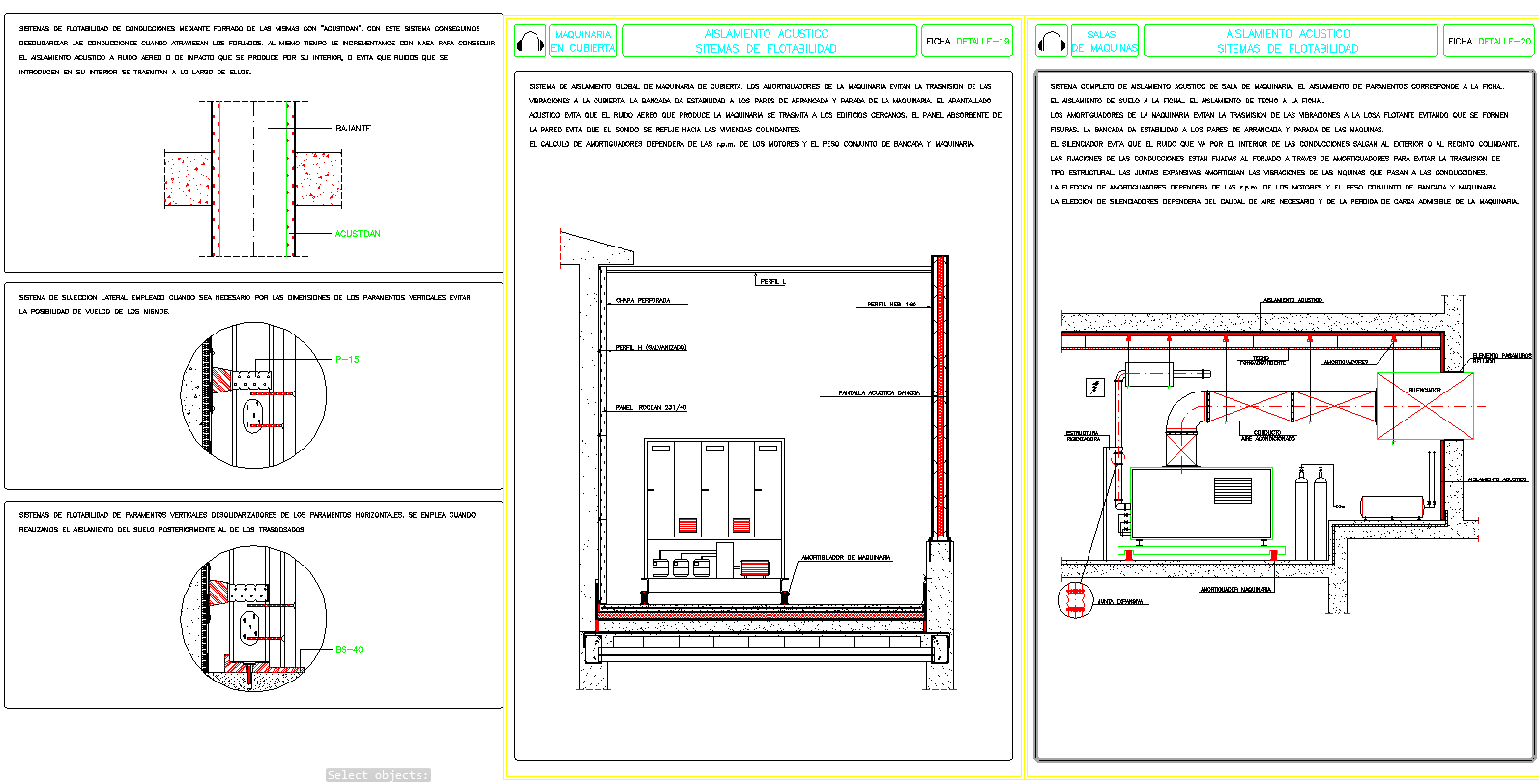

The acoustic roofing system detail drawing presents technical construction details for sound insulation and vibration control within building structures. This CAD drawing illustrates acoustic roofing layers, insulation panels, structural supports, and installation arrangements used to reduce sound transmission and improve indoor acoustic performance. The drawing includes sectional views of roofing assemblies, vibration isolation components, and wall insulation systems designed to minimize noise transfer from mechanical equipment and external sources. Such acoustic roofing designs are commonly used in industrial facilities, machinery rooms, and technical service areas where sound control is essential.
