Roof deck detail drawing is given in this AutoCAD file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

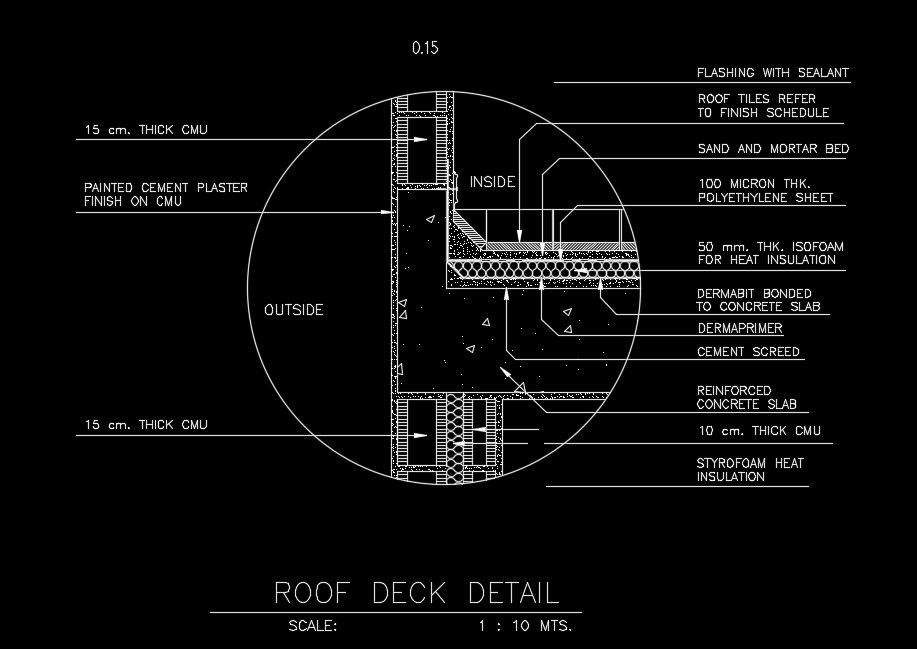

Roof deck detail drawing is given in this AutoCAD file. This is given for the 13x12m house plan. 15cm thickness CMU, flashing with sealant, roof tiles, cement screed, reinforced concrete slab, sand & mortar bed, and insulation details are mentioned. For more details download the AutoCAD drawing file from our website.
File Type:
DWG
File Size:
2.1 MB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#Roof deck detail drawing#13x12m house plan#13x12m house plan drawing#13x12m home plan#13x12m house design AutoCAD drawing
