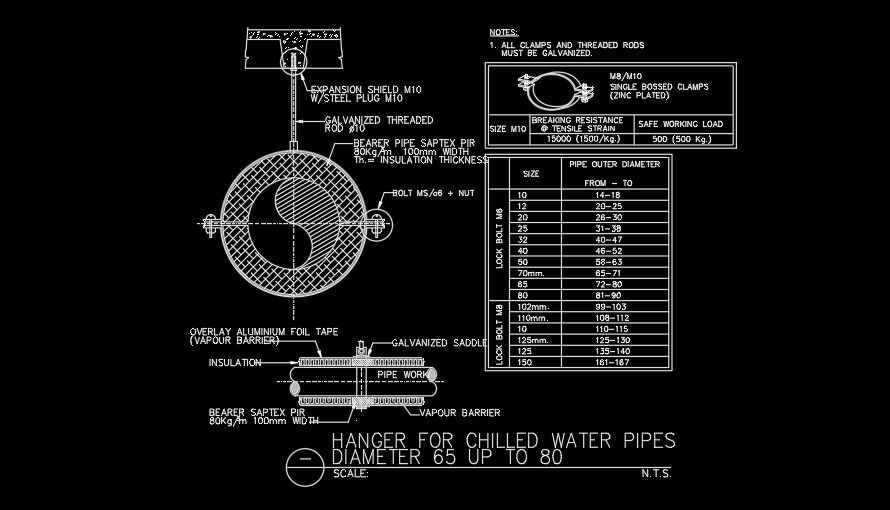

65 to 80 diameter hanger for chilled water pipes AutoCAD drawing
Description
65 to 80 diameter hanger for chilled water pipes AutoCAD drawing is given in this file. Bearer saptex, aluminum foil tape, Pipe clamp, insulation, galvanized saddle, vapour barrier, galvanized threaded rod, expansion shield, and other details are mentioned. For more details download the AutoCAD drawing file from our cadbull website.
