Typical interface existing pile cap AutoCAD drawing
Tags
#Typical interface existing pile cap#pile cap#existing pile cap#pile cap drawing
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

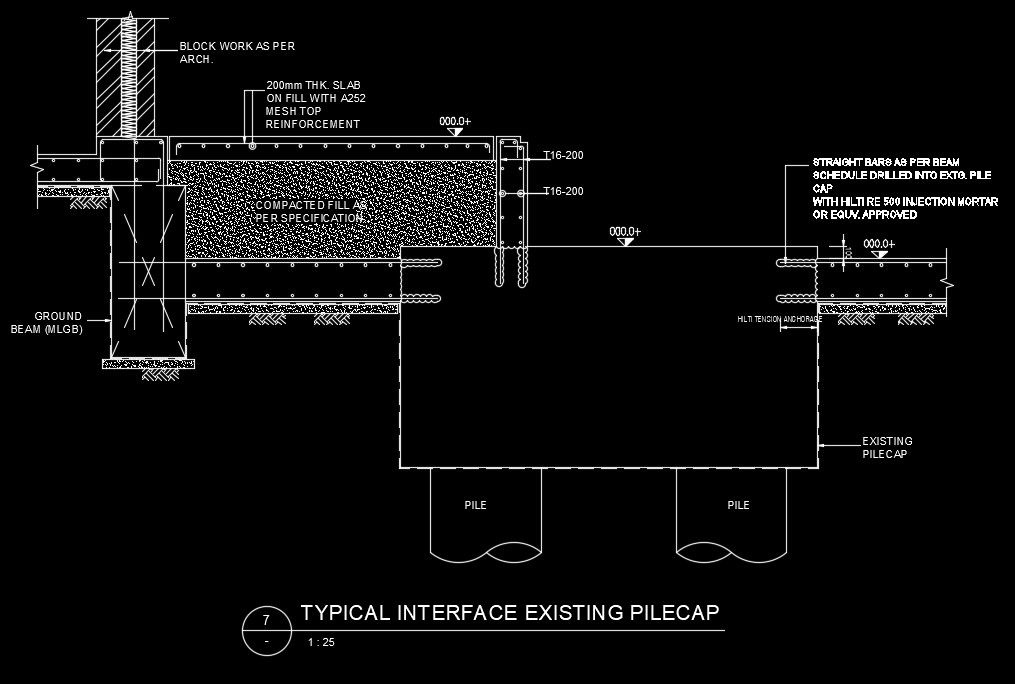

Typical interface existing pile cap AutoCAD drawing is given in this file. Ground beam is provided at the bottom line. Compacted fill has been done in the middle. 200mm thickness slab on fill with A252 mesh top reinforcement. Straight bars are provided as per beam schedule drilled into existing pile cap with injection mortar and other details are mentioned. For more details download the AutoCAD drawing file from our website.
