Typical beam to existing pile cap connection detail drawing is given in this AutoCAD file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

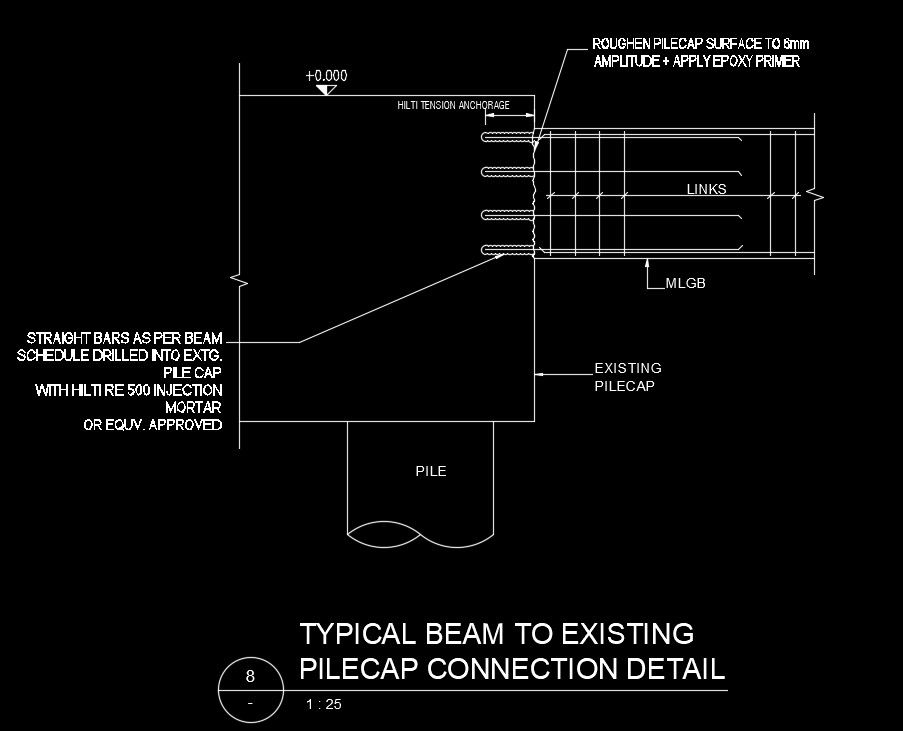

Typical beam to existing pile cap connection detail drawing is given in this AutoCAD file. Links are provided. Straight bars are per beam schedule drilled into existing pile cap with hltire 500 injection mortar, and other details are mentioned. For more details download the AutoCAD drawing file from our website.
File Type:
DWG
File Size:
7.1 MB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#Typical beam to existing pile cap connection detail drawing#pile cap#existing pile cap#pile cap drawing
Uploaded by:
Meera
