17x17m house plan roof layout AutoCAD drawing is given in this file

Description

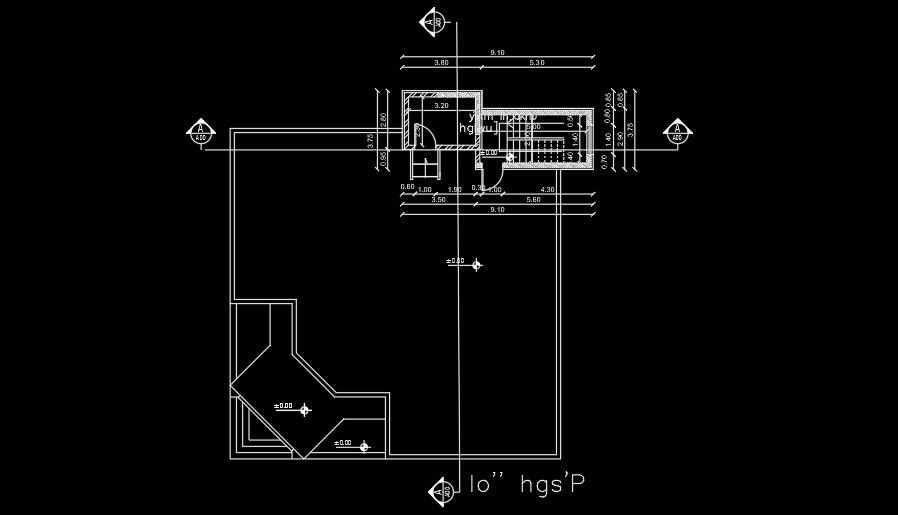

17x17m house plan roof layout AutoCAD drawing is given in this file. The length and breadth of the staircase are 9.1m and 3.75m respectively. For more details download the AutoCAD drawing file from our cadbull website.

File Type: DWG File ID: 190728

Uploaded by:

Meera
India

Download Add to library
