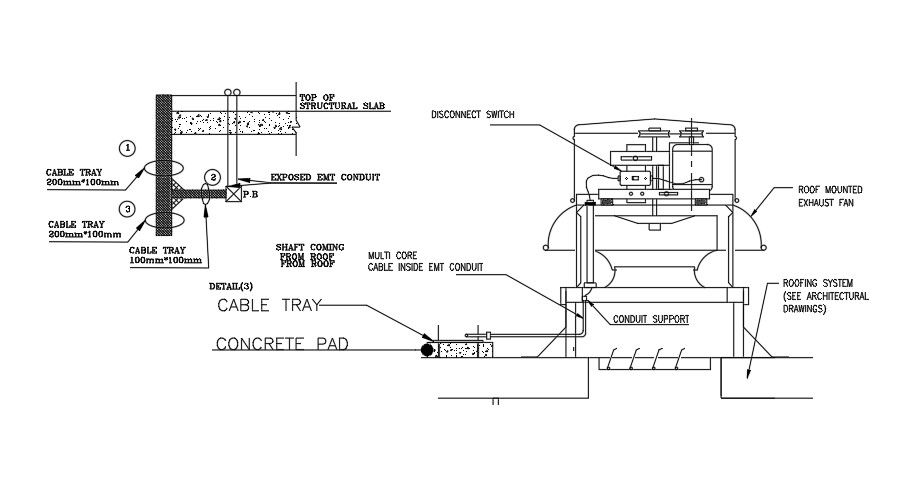

A section view of the core cable in flexible watertight conduit drawing is given in this model. Weatherproof local disconnect switch, cable cleat, multi core cable inside EMT conduit, cable try, concrete pad, structural slab, and roofing systems are mentioned. For more details download the AutoCAD drawing file from our cadbull website.
